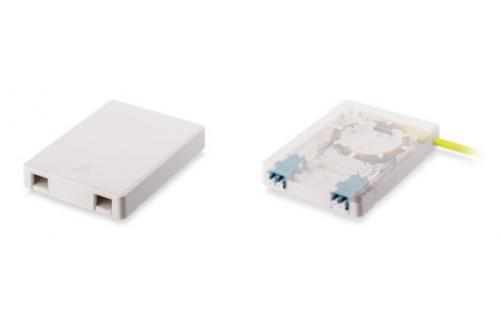

Signamax Optical Fiber Splice Box is a versatile component designed to service a wide range of applications where a presence of an interconnection point is required such as (but may not be limited by) various types of interconnects (FTTx, POL, BMS, etc.), terminals, cabling transition points, splices, active equipment connections, access point connections, home network connections, etc. It’s simple two-piece design with a snap-on cover allows quick and easy mounting on practically any flat surface (wall, backboard, furniture) or on a standard wall electrical outlet box/bracket (both American and European styles). TIA and Telcordia standard-compliant Internal arrangement provides for creating various connections based on up to four fibers, up to two simplex SC or two duplex LC adapters (or combination of both), and up to four fusion/mechanical splices.
ABS Thermoplastic
Adapter : Up to 2
Fibers: Up to 4
Sleeves: Up to 4 (40 mm)
0.71” D x 3.31″ W x 4.61″ H (18 mm x 84 mm x 117 mm)
Operating Temperature: 14 °F to 140 °F (-10 °C to 60 °C)
Storage Temperature: -40 °F to 158 °F (-40 °C to 70 °C)
Operating RH: 93% Max (non-condensing)
Tekordia GR-769
5-year Limited Component
10-year Signamax Base Trunk
15-year Signamax Extended Component
25-year Signamax Cabling System
Information will be available soon
| Part Number | Description | |
| OFSB-01 | Optical Fiber splice box, capacity: 2 adapters, 4 splices |
