OVERVIEW

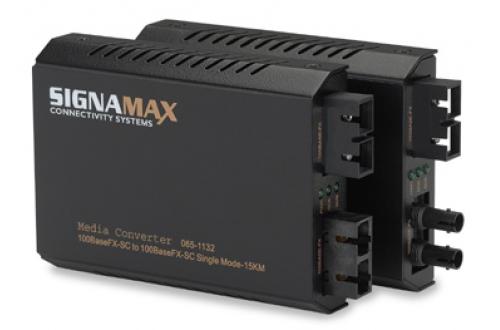

The Signamax 100FX Singlemode to Multimode Media Converters provide efficient solutions for interconnecting multimode fiber LANs over longer distances by integrating singlemode fiber optic cable into the LAN. By providing a multimode interface to singlemode fiber carrier demarcation points, these media converters enable Ethernet LAN and WAN connectivity.

Each Media Converter is enclosed in a compact, strong metal case and includes an external power supply for stand-alone applications. They can also be installed without modification into the Signamax Rack Mount Chassis system, featuring redundant power supplies for high reliability in multiple converter installations.

KEY FEATURES

Flexibility extends transmission distance
via multimode to singlemode fiber conversion
Sturdy Metal Enclosure
LEDs monitor network status
Supports wall mounting, DIN-rail mounting
or use with media converter rack mount chassis
Limited Lifetime Warranty

SPECIFICATIONS

APPLICABLE STANDARDS

IEEE 802.3u 100BaseFX

FIXED PORTS

1 – SM Fiber optic 100BaseFX port, plus
1 – MM Fiber optic 100BaseFX port with varying connectors per P/N

LED STATUS INDICATORS

Per Unit: Power
Per Fiber Port: Port A Link (SDA); Port B Link (SDB)

PERFORMANCE

Latency: < 21 bit times
Throughput, per port: @ 100Base: 148,809 pps (64-byte packets)
Speed: 100BaseFX: 100/200 Mbps for half/full duplex

FIBER INTERFACE

Multimode Ports
Type: LED
Wavelength: 1300 nm nominal (1270 nm max.,1380 nm min.)
Max Output Power: -14.0 dBm
Min Output Power: -20.0 dBm
Sensitivity: -33.0 dBm
Max Input Power: -8.0 dBm
Link Power Budget: 13.0 dB

Singlemode Ports
Type: MQW Laser
Wavelength:1300 nm nominal (1270 nm max.,1360 nm min.)
Max Output Power:
065-1132: -7.0 dBm
Min Output Power:
065-1132: -15.0 dBm
Sensitivity:
065-1132: -34.0 dBm
Max Input Power:
065-1132: -7.0 dBm
Link Power Budget:
065-1132: 19.0 dB

ELECTRICAL CHARACTERISTICS

12 V DC. External 100 – 240 V AC 50/60 Hz. Power supply included.

ENVIRONMENTAL REQUIREMENTS

Operating Temperature: 32°F to 122°F (0°C to 50°C);
Storage Temperature: -13°F to 158°F (-25°C to 70°C)
Relative Humidity: 10% to 95% (non-condensing)

PHYSICAL CHARACTERISTICS

Dimensions: 4.33” L x 3.19” W x 0.91” H
(109.2 mm x 83 mm x 23.8 mm)
Weight: 0.33 lb (150 g)

CERTIFICATIONS

CE, FCC, ROHS, VCCI Class A

WARRANTY

Limited Lifetime

DOWNLOADS

User’s Guide

Specifications

ORDERING INFORMATION

Part Number	Description
065-1130	100BaseFX SC/SM, 15 km Span to 100BaseFX ST/MM, 2 km Span -Special order
065-1130ED	100BaseFX SC/SM, 40 km Span to 100BaseFX ST/MM, 2 km Span -Special order
065-1130XLD	100BaseFX SC/SM, 75 km Span to 100BaseFX ST/MM, 2 km Span -Special order
065-1132	100BaseFX SC/SM, 15 km Span to 100BaseFX SC/MM, 2 km Span
065-1132ED	100BaseFX SC/SM, 40 km Span to 100BaseFX SC/MM, 2 km Span -Special order
065-1132XLD	100BaseFX SC/SM, 75 km Span to 100BaseFX SC/MM, 2 km Span -Special order

Mounting Options

Part Number	Description
AM10010	DIN-Rail Mounting for 065-11xx Series and 065-1696SFPDR Media Converters
065-1185	16-Bay Rack Mount Media Converter Chassis, AC
