OVERVIEW

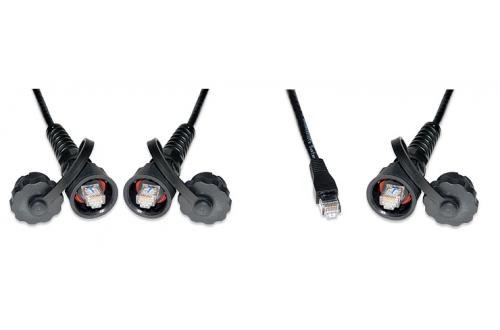

Signamax category 5e industrial-grade patch cords provide the same high-level transmission performance as other Signamax cords intended for regular commercial applications, but with robustness capable to withstand harsh environments typical to factory floors, chemical, food processing plants, etc. Unique IP67-rated plug housing design along with industrial-grade stranded cable guarantee superb protection against liquid and solid agents’ penetration, against vibrations, and for a long-life reliable performance.
Cords are furnished with dust caps on the protected ends to prevent exposure of unplugged connectors.
SPECIFICATIONS
ANSI/TIA-568-C.2: category 5e (1-100 MHz) specifications (100% tested)
4-pair unscreened 100-Ohm stranded twisted pair (U/UTP)
ANSI/TIA-568-C.2: T568A & T568B
ISO/IEC 11801 2nd Ed.: 8-position conductor/pair assignment (1-2/3-6/4-5/7-8)
– 4 stranded 24-AWG copper pairs in thermoplastic insulation, industrial-grade outer jacket
– high-impact clear polycarbonate 8p8c plugs
– IP67-rated industrial-grade thermoplastic plug housings
– thermoplastic boots
– thermoplastic strain relief
Contacts: phosphor bronze, min 50 μin of gold plating over 100 μin of nickel in contact area
Insulation resistance: min 500 MOhm @ 100 Vdc
Dielectric withstanding voltage: 1,000 Vdc/ac peak contact to contact @ 60 Hz for 1 min
Contact resistance: max 20 mOhm
Current rating: see figure
Assembly: FCC Part 68 Subpart F
Housing: UL listed 94V-0 flame retardant polycarbonate
Retention: 50 N (11 lbf) for 60±5 s
Mating cycle life: min 750 cycles
Tensile strength: ≥ 20 N per wire
– industrial-grade high-impact flame-retardant thermoplastic
– UL 94V-0 rated
– IP67 rated (complete protection against dust, protection against the effects of temporary immersion up to 1 m (3 ft))
CONDUCTOR:
Material: bare copper
Size: 24 AWG stranded (7 x 32 AWG strands per conductor)
INSULATION:
Color coding 1: white-blue 2: blue 3: white-orange 4: orange
5: white-green 6: green 7: white-brown 8: brown
SHEATH:
Material: polyurethane (PUR), NEC/CEC VW-1 rated
Diameter: 5.59 mm (0.220 in)
Thickness: 0.51 mm (0.020 in)
Color: see ORDERING INFORMATION
Tensile strength: > 400 N (90 lbf)
Min. bend radius: 25 mm (1 in) recommended
Storage: -40 °C – +70 °C (-40 °F – +158 °F)
Operation: -10 °C – +60 °C (+14 °F – +140 °F)
RH (operation): modular plugs – max non-condensing 93 %, industrial-grade plugs – IP67
ANSI/TIA-568-C.2, IEC 60603-7, IEC 61156-6, IEC 60332-1-2, FCC Part 68 Subpart F, UL 94V-0
X.21, V.11, S0, ISDN, CSMA/CD 10BASE-T, 100BASE-TX, 100BASE-T4, 100BASE-T2, 1000BASE-T, 10GBASE-T (up to 55 m (180 ft)), TR 4/16/100, 100BASE-VG, ATM LAN 25/51/155, TP-PMD
5-year limited component warranty
10-year Signamax Link/Channel Warranty
15-year Signamax Extended Component Warranty
25-year Signamax Cabling System Warranty
