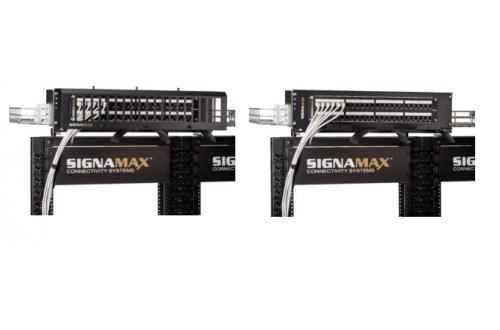

The Signamax Top-of-Rack Panel Enclosure (ToR) offers a high density design with a universal footprint that accepts common components for fiber and copper connectivity. The ToR anchors to most ladder racks and cable trays using universal brackets to easily fit multiple applications.
Maximizing rack space with adaptive overhead connectivity with cable management options for the front and back keeps installation clean. This design is also a perfect fit for HPC environments or computer rooms with network operations centers to maximize rack space in the EDA by reducing the layer one footprint.
Wire Basket Tray (Side/Edge): 2” x 1” and 2” x 2” in mesh
Ladder Rack (Side/Edge): up to 0.5” (13 mm) wide & 1.25” (32 mm) or 1.5” (38 mm) high stringers
Construction Element with Horizontal Flange/Beam: up to 0.75” (19 mm) deep
Unit (without bracket):
DC-TOR01-2U: 4.9” D x 23.6” W x 7.5” H (125 mm x 600 mm x 190 mm)
DC-TOR01-4U: 4.9” D x 23.6” W x 11” H (125 mm x 600 mm x 280 mm)
Bracket Depth: 5.0” (125 mm) or 6.0” (153 mm)
Vertical Level:
DC-TOR01-2U: up to ± 4 in (100 mm)
DC-TOR01-4U: up to ± 7.5 in (100 mm)
Horizontal Level: up to ± 0.6 in (15 mm)
Frame, Stage, Brackets, & Mounting Fixtures: Steel with corrosive resistant black finish
Cover: Aluminum with black finish
Fastners: Steel/Stainless steel with zinc plating & black anodizing
Operating Temperature: 14 °F to 140 °F (-10 °C to 60 °C)
Storage Temperature: -40 °F to 158 °F (-40 °C to 70 °C)
Operating RH: 93% Max (non-condensing)
CEA-310-E
5-year Limited Component
10-year Signamax Base Trunk
15-year Signamax Extended Component
25-year Signamax Cabling System
Information will be available soon
| Part Number | Description | |
| DC-TOR01-2U2111 | 2 RMU ToR Panel Enclosure with 6" Flanges, Cable Management Cover & Waterfall, and Spider Brackets | |
| DC-TOR01-2U2011 | 2 RMU ToR Panel Enclosure with 6" Flanges, Cable Management Waterfall, and Spider Brackets |
| Part Number | Description | |
| DC-TOR01-2U2113 | 2 RMU ToR Panel Enclosure with 6" Flanges, Cable Management Cover & Waterfall, and 1.5" U Brackets | |
| DC-TOR01-2U2013 | 2 RMU ToR Panel Enclosure with 6" Flanges, Cable Management Waterfall, and 1.5" U Brackets |
| TYPE | MODEL | CAPACITY | FLANGES | COVER | WATERFALLS | MOUNTING OPTIONS | |
| DC-TOR | 01 | – | X | X | X | X | X |
| 2U: 2 RMU | 0: None | 0: None | 0: None | 0: None | |||
| 4U: 4 RMU | 1: 5″ Deep | 1: Cover | 1: Waterfalls | 1: Wire basket tray (Spider brackets) | |||
| 2: 6″ Deep | 2: Runway, 1.25″ Stringers (U brackets) | ||||||
| 3: Runway, 1.50″ Stringers (U brackets) | |||||||
| 4: Flange/Bream (Clamp brackets) |
Note: DC-TOR01-4U models available end of Q4-2017.
