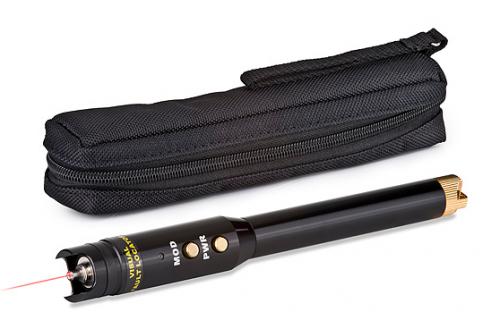

Optical fiber visual fault locator can be used for locating various discontinuities in optical fibers, such as sharp bends, breaks, poor connector alignment, etc. and for fiber splicing and termination using light with wavelength in the visible spectrum.
Recommended as a light source in termination procedures of Signamax Field-Installable Pre-Polished Optical Fiber Connectors.
Body:
metal alloy
crash- and dust-proof
Light source:
FP-LD laser diode
wavelength – 650±10 nm (visible red)
1 mW Class IIIa
ESD protection
Operation buttons:
power on/off
continuous/pulse mode
Continuous:
steady illumination (green light constantly on)
Pulse:
2-3 Hz high-contrast detection for environments
with high-illumination levels (green light blinking)
Standard: 2.5-mm adapter (ST-style connectors – ST, FC, SC)
Optional: 1.25-mm adapter (LC-style connectors)
2 AA-size batteries (not included in standard specification)
Continuous operation: 65 hours typical
Low battery warning (red light)
Operation: -10 – +45 °C (+14 – +113 °F)
Storage: -40 – +70 °C (-40 – +158 °F)
L 180 mm D 15 mm
L 7.1 in D 0.6 in
Weight: 120 g (4.3 oz) without batteries
ANSI Z136.1 Class IIIa, CE EMI/EMC, RoHS
Information will be available soon
| Part Number | Description | |
| OFVFL-3 | Optical Fiber Visual Fault Locator, Field Heavy-Duty, 2.5 mm (ST, FC, SC) 1mw | |
| OFVFL-3-1 | 1.25-mm (LC) Adapter for OFVFL-3 |
Batteries are not included; require 2 AA-size batteries.
