Optical Fiber Distribution Boxes

Optical Fiber Distribution Boxes

OVERVIEW

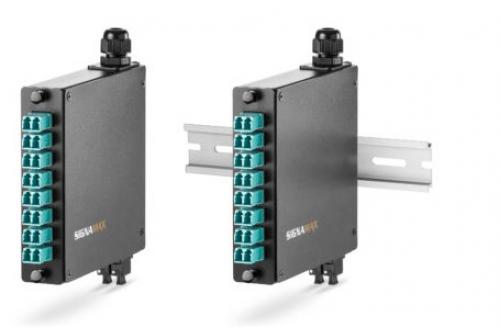

 The Signamax Optical Fiber Distribution Box is a multi-functional tool that may be used as a transition device (e.g., demarcation point, transition point, manifold industrial outlet, etc.) in several networking environments such as industrial floor, commercial office, protected outdoor installation.

It’s ability to mount on surfaces and DIN-rails, both normal and flat, its small form factor, standard LGX mounting interface, and various cable entry ports (compression fittings, MPO adapters) make OFDB a product of choice where there is a requirement for a small yet robust optical fiber distribution hub based on connectorization and splicing technologies.



KEY FEATURES



  • DIN-Rail & Surface mountable transitional fiber distribution point
  • Maximum of 24 optical fiber termination density
  • Splice holding feature for up to 12 fibers or 24 overall
  • Eight brackets to assist with proper fiber slack management
  • Two cable entry points with multiple fitting options accommodates a variety of applications
  • LGX modular adapter plate with plunger locks integrated
  • Durable steel case with high-impact, corrosive resistant black finish



SPECIFICATIONS



  • CONSTRUCTION

Housing: Steel with Corrosive resistant black finish
Front Cover: Aluminum

  • CAPACITY

Communication Ports:
OFDB-01-04: up to 12 fibers
OFDB-01-02: up to 24 fibers
OFDB-01-03: up to 24 fibers
Adapter Plates: 1 Max up to 24 fibers; LGX format
Splice Holders: 2 Max
OFDB-01-05: up to 6 fibers (12 overall)
OFDB-01-06: up to 12 fibers (24 overall)

  • MOUNTING DIMENSIONS

Depth: 5.32” (135 mm)
Width: 1.18” (30 mm)
Height: 5.12” (130 mm)
OFDB-01: Flat surface, screws
OFDB-01DR: 35-mm DIN-Rail, clip

  • ENVIRONMENTAL CONDITIONS

Operating Temperature: 14 °F to 140 °F (-10 °C to 60 °C)
Storage Temperature: -40 °F to 158 °F (-40 °C to 70 °C)
Operating RH: 93% Max (non-condensing)

  • WARRANTY

 5-year Limited Component
10-year Signamax Base Trunk
15-year Signamax Extended Component
25-year Signamax Cabling System



DOWNLOADS

Information will be available soon

ORDERING INFORMATION



Part Number Description
OFDB-01 Surface Mount Optical Fiber Distribution Box
OFDB-01DR DIN-Rail Mount Optical Fiber Distribution Box

Accessories

Part Number Description
OFDB-01-01 Blank Cable Entry Port Cover with mounting screws
OFDB-01-02 2 x MPO-A Adapter with mounting Screws
OFDB-01-03 1 x MG12 Cable Gland Adapter with mounting Screws
OFDB-01-04 1 x MPO-A Adapter with mounting Screws
OFDB-01-05 Optical Fiber Splice Holder - 6 fibers with 6 OFFSS-30-60 sleeves
OFDB-01-06 Optical Fiber Splice Holder - 12 fibers with 12 OFFSS-15-40 sleeves

Adapter Plates and Splice Holders sold separately.
