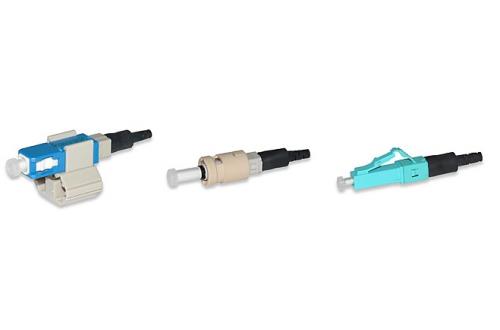

Premium Pre-Polished Optical Fiber Connectors

Premium Pre-Polished Optical Fiber Connectors

OVERVIEW

 Signamax Premium Pre-Polished Optical Fiber Connectors allow reducing installation time significantly owing to the absence of need to use adhesives and polishing. This unique feature makes possible to eliminate field termination errors and to provide equal quality of connection performed by an experienced installer and apprentice.

Available in multimode (62.5-µm (OM1), 50-µm (OM2), 50-µm laser-optimized (LO) (OM3/OM4), and singlemode ST, SC, and LC versions, field- installable connectors feature a polished ferrule with a factory-installed fiber stub, which splices in the field to distribution cable fibers using an integrated alignment mechanism and index-matching gel. The alignment mechanism is activated with the help of a termination clip, which is supplied with each connector; after successful termination, the clip is removed. Field-installable connectors are designed to terminate 250- and 900-µm buffered fibers, and 2.0- and 3.0-mm jacketed fibers.

KEY FEATURES



  • Field installation procedures minimized and simplified – pre-polished ferrule with a factory-installed fiber stub, integrated alignment mechanism and index-matching gel
  • Available in the following versions:
    – 62.5-µm multimode (OM1)
    – 50-µm multimode (OM2)
    – 50-µm laser-optimized (LO) multimode (OM3/OM4)
    – singlemode
  • ST, SC, and LC simplex connectors
  • Termination clip and detailed installation instructions are supplied with each connector;
  • Designed to terminate 250-µm and 900-µm buffered fibers, 2.0-mm and 3.0-mm jacketed fibers.
  • Plastic body color-coding per ANSI/TIA-598-C.3
  • Slim-profile boots with durable flexible cable strain relief

SPECIFICATIONS



  • TRANSMISSION PERFORMANCE

ANSI/TIA/EIA-568-C.3: insertion and return loss (100% tested)

  • TRANSMISSION MEDIA

Optical fiber:
62.5/125-µm multimode (OM1)
50/125-µm multimode (OM2)
50/125-µm laser-optimized (LO) multimode (OM3/OM4)
8-10/125-µm singlemode (OM1/OM2)

  • CONNECTOR TYPES

Connector type:
ST, SC, LC simplex, multimode, PC
ST, SC, LC simplex, singlemode, UPC
FOCIS (ANSI/TIA/EIA-604) compliant

  • CONSTRUCTION

Body: thermoplastic
Ferrule: ceramic- thermoplastic strain relief
Strain relief boot: thermoplastic

  • TRANSMISSION PERFORMANCE

Return loss:
MM: maximum 30 dB @ 20 °C (68 °F)
SM:typical 56 dB @ 20 °C (68 °F), maximum 45 dB @ 20 °C (68 °F)

Insertion loss:
MM:typical 0.1 dB, maximum 0.5 dB
SM:typical 0.2 dB, maximum 0.5 dB

  • ENVIRONMENTAL

Operation temperature: -40 °C to +75 °C (-40 °F to +167 °F)
Humidity: 95 % RH (non-condensing)

  • COMPLIANCE

ANSI/TIA-568-C.3, ISO/IEC 11801 2nd Ed., CENELEC EN 50173, UL94V-0

  • APPLICATIONS
  FDDI PMD ANSI X3.166   10BASE-SX   100BASE-SX
100BASE-FX
  1000BASE-SX
1000BASE-LX
  10GBASE-S
10GBASE-LX4
10GBASE-LRM
  Fibre Channel 100-MX-SN-I
Fibre Channel 200-MX-SN-I
Fibre Channel 400-MX-SN-1
Fibre Channel 1200-MX-SN-1
  • WARRANTY

5-year limited component warranty
10-year Signamax Link/Channel Warranty
15-year Signamax Extended Component Warranty
25-year Signamax Cabling System Warranty



DOWNLOADS

Information will be available soon

ORDERING INFORMATION

 ST Pre-Polished Optical Fiber Connectors

FPC-ST06FPC-ST09

Part Number Description
FPC-ST06 62.5-µm MM (OM1), for 250- and 900-µm buffered fibers, Beige
FPC-ST05 ST, 50-µm MM (OM2), for 250- and 900-µm buffered fibers, Black
FPC-ST51 ST, 50-µm LO MM (OM3/OM4), for 250- and 900-µm buffered fibers, Aqua
FPC-ST09 ST, SM, for 250- and 900-µm buffered fibers, Blue

Note: Sold in multiples of 6 pcs.

SC Pre-Polished Optical Fiber Connectors



FPC-SC06FPC-SC09

Part Number Description
FPC-SC06 SC, 62.5-µm MM (OM1), for 250- and 900-µm buffered fiber, 2- and 3-mm jacketed cables, beige
FPC-SC05 SC, 50-µm MM (OM2), for 250- and 900-µm buffered fibers, 2- and 3-mm jacketed cables, black
FPC-SC51 SC, 50-µm LO MM (OM3/OM4), for 250- and 900-µm buffered fibers, 2- and 3-mm jacketed cables, aqua
FPC-SC09 SC, SM, for 250- and 900-µm buffered fibers, 2- and 3-mm jacketed cables, blue

Note: Sold in multiples of 6 pcs.

LC Pre-Polished Optical Fiber Connectors



FPC-LC06FPC-LC51

Part Number Description
FPC-LC06 LC, 62.5-µm MM (OM1), for 250- and 900-µm buffered fibers, 2- and 3-mm jacketed cables, beige
FPC-LC05 LC, 50-µm MM (OM2), for 250- and 900-µm buffered fibers, 2- and 3-mm jacketed cables, black
FPC-LC51 LC, 50-µm LO MM (OM3/OM4), for 250- and 900-µm buffered fibers, 2- and 3-mm jacketed cables, aqua
FPC-LC09 LC, SM, for 250- and 900-µm buffered fibers, 2- and 3-mm jacketed cables, blue

Note: Sold in multiples of 6 pcs.
