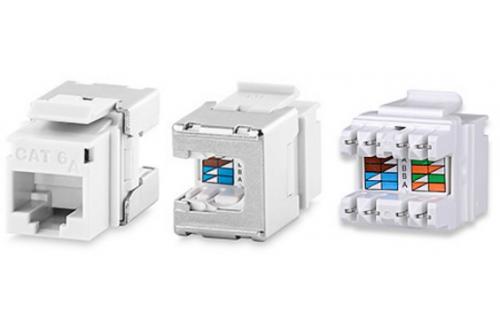

Category 6A MT-Series Unscreened Keystone Jacks

Category 6A MT-Series Unscreened Keystone Jacks

OVERVIEW

Category 6A unscreened high-density keystone jacks have been designed to meet the need for today's high-bandwidth applications. Category 6A connectors are slim in profile for the highest density applications, and are engineered to exceed all ANSI/TIA-568-C.2 category 6A requirements. Jacks support both T568A and T568B wiring schemes for maximum flexibility using an easy-to-read color-code wiring label. Special design features allow jack to be terminated with a standard 110 single-position tool or with the Signamax four-pair tool. The connec-tors contact design provides enhanced plug-to-jack connection integrity, protects against damage caused by insertion of 4- or 6-position plugs and is rated for a minimum of 750 plug insertions providing for the highest level of system reliability. Jacks feature the ability to mount either color-coded icons for service identification or dust covers to protect unused jacks from dust and other contaminants. Rear 110 contacts provide improved conductor retention and ease of termination. Jacks are supplied with a metallized plastic cable retention cap, which eliminates alien crosstalk for maximum performance.

KEY FEATURES

  • Guaranteed to meet or exceed TIA-568-C.2 component performance
  • Rated for at least 750 plug insertions providing for the highest level of system reliability
  • Supports TIA-568-C.2 category 6A 100-meter channel performance
  • Contact design provides enhanced plug-to-jack connection integrity and protects against damage caused by insertion of 4- or 6-position plugs
  • Multi-purpose keystone design - equally suitable as a work area outlet and a patch panel port
  • T568A and T568B wiring with an easy-to-read color-code wiring label for maximum flexibility
  • 180° high density - compatible with all Signamax keystone faceplates, surface mount boxes, and snap-in patch panels
  • Have an ability to mount either color-coded icon tabs for service identification or dust covers to protect unused jacks form dust and other contaminants
  • Rear 110 type contacts provide improved wire retention and ease of termination
  • Terminated with standard single-position 110 or Signamax four-pair termination tools

SPECIFICATIONS

  • TRANSMISSION PERFORMANCE

ANSI/TIA-568-C.2: meets or exceeds category 6A (1-500 MHz) component specifications

  • TRANSMISSION MEDIA

Unscreened twisted pair (U/UTP)

  • JACK TYPE

8p8c (8-position, 8-contact) "RJ45" typez

  • WIRING SCHEME

ANSI/TIA/EIA-568-B.2: T568A & T568B
ISO/IEC 11801 2nd Ed.: 8-position pin/pair assignment (1-2/3-6/4-5/7-8)

  • WIRE GAUGE

22-24 AWG (0.644-0.511 mm)

  • ELECTRICAL

Insulation resistance: min 500 MOhm @ 100 Vdc
Dielectric withstanding voltage: 1,000 Vdc/ac peak contact to contact @ 60 Hz for 1 min
Spring wire contact resistance: max 20 mOhm
IDC contact resistance: max 2.5 mOhm

  • CONSTRUCTION

Housing: high impact thermoplastic, UL94V-0 fire retardant
Jack spring wire: phosphor bronze alloy plated with 50 μin of gold over 70-100 μin of nickel
IDC: 110 type, phosphor bronze alloy with 100 μin 100% tin alloy

  • MECHANICAL

Total contact force: min 800 g for 8 wire leads
Retention: 50 N (11 lbf) for 60±5 s
Mating cycle life: min 750 cycles

  • FOOTPRINT

Standard keystone footprint

  • MOUNTING DIMENSIONS:

D 30.80 mm H 19.30 mm W 16.90 mm
D 1.213 in H 0.760 in W 0.665 in

  • ENVIRONMENTAL CONDITIONS

Storage: -40°C - +70°C (-40°F - +158°F)
Operation: -10°C - +60°C (+14°F - +140°F)
RH (operation): max non-condensing 93%

  • COMPLIANCE

ANSI/TIA-568-C.2, IEEE 802.3 ab, FCC Part 68 Subpart F, UL 94V-0

  • APPLICATIONS

X.21, V.11, S0, ISDN, CSMA/CD 10BASE-T, 100BASE-TX, 100BASE-T4, 100BASE-T2, 1000BASE-T, 10GBASE-T, TR 4/16/100, 100BASE-VG, ATM LAN 25/51/155, TP-PMD

  • WARRANTY

5-year limited component warranty
10-year Signamax Link/Channel Warranty
15-year Signamax Extended Component Warranty
25-year Signamax Cabling System Warranty

ORDERING INFORMATION



Part Number Description
KJ458MT-C6AC Category 6A MT-Series Keystone Jack, T568A/B Wiring, Light Ivory
KJ458MT-C6AC-WH Category 6A MT-Series Keystone Jack, T568A/B Wiring, White
KJ458MT-C6AC-YE Category 6A MT-Series Keystone Jack, T568A/B Wiring, Yellow
KJ458MT-C6AC-OR Category 6A MT-Series Keystone Jack, T568A/B Wiring, Orange
KJ458MT-C6AC-RD Category 6A MT-Series Keystone Jack, T568A/B Wiring, Red
KJ458MT-C6AC-BU Category 6A MT-Series Keystone Jack, T568A/B Wiring, Blue
KJ458MT-C6AC-GN Category 6A MT-Series Keystone Jack, T568A/B Wiring, Green
KJ458MT-C6AC-GY Category 6A MT-Series Keystone Jack, T568A/B Wiring, Gray
KJ458MT-C6AC-BK Category 6A MT-Series Keystone Jack, T568A/B Wiring, Black
