Category 6 MT-Series Screened Angled Patch Panels

Category 6 MT-Series Screened Angled Patch Panels

OVERVIEW

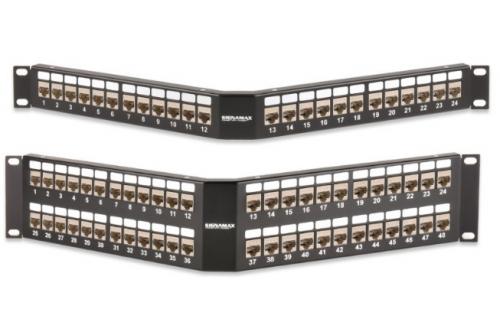

 The Signamax Category 6 MT-Series Screened Angled Patch Panels are designed to offer a complete panel and jack option. The MT-series includes the option of a 24, 48, or 72 port panel, and black snap-in keystone jacks. This space saving angled design allows easy termination and flexibility for future adds, moves or changes, giving installers the perfect cost effective solution for Category 6 applications.

The keystone jacks’ solid-metal shielding eliminates EMI, and in lieu of fixed termination, a standard single-position 110 termination tool or a specialized Signamax multi-pair tool can be used. For easy circuit identification, each port designation features a labeling area with a reference number. The keystone jacks are rated for a minimum of 750 plug insertions providing for the highest level of system reliability.

KEY FEATURES



  • Exceeds ANSI/TIA-568-C.2 transmission performance specifications
  • Supports TIA-568-C.2 category 6 100 meter 4-channel performance
  • Overall solid-metal shielding design for 360° screen coverage
  • Removable rear cable management bar
  • Improved wire retention and ease of termination with rear 110 type contacts
  • Slim profile for the highest density applications
  • Angled design eliminates the need for cable management panels saving space
  • Cold-rolled steel construction for maximum strength and durability
  • Easy-to-read T568A/B wiring scheme color-coded label



SPECIFICATIONS



  • TRANSMISSION PERFORMANCE

ANSI/TIA-568-С.2:  exceeds category 6 (1-250 MHz) component specifications

  • TRANSMISSION MEDIA

Unscreened twisted pair (U/UTP) or screened (U/STP, F/UTP, F/STP, S/UTP, S/STP, SF/UTP, SF/STP) twisted pair
Cable Diameter:
Min: 0.20” (5 mm)
Max: 0.35” (9 mm)

  • JACK TYPE

8p8c (8-position, 8-contact) “RJ45” style

  • WIRING SCHEME

ANSI/TIA-568-C.2: T568A & T568B
ISO/IEC 11801 2nd Ed.: 8-position pin/pair assignment (1-2/3-6/4-5/7-8)

  • WIRE GAUGE

22 to 24 AWG (0.644 to 0.511 mm)

  • ELECTRICAL

Insulation Resistance: Min 500 MOhm @ 100 Vdc
Dielectric Withstanding Voltage: 1,000 Vdc/ac peak contact-to-contact @ 60 Hz for 1 min
Spring Wire Contact Resistance: Max 20 mOhm
IDC Contact Resistance: Max 2.5 mOhm
Current Rating: Refer to downloadable spec sheet

  • CONSTRUCTION

Panel:
     Front: Steel with corrosive resistant black finish
     Rear: Steel
Jack:
     Housing: High impact thermoplastic, UL94V-0 fire retardant
     Spring Wire:
Phosphor bronze alloy plated with 50 μin of gold over 70 to 100 μin of nickel
     IDC:
110 type, phosphor bronze alloy with 100 μin 100% tin alloy

  • MECHANICAL

Total Contact Force: Min 800 g for 8 wire leads with FCC compliant 8p8c plug
Retention: 50 N (11 lbf) for 60 ± 5 s
Mating Cycle Life: Min 750 cycles with FCC compliant 8p8c plug

  • MOUNTING DIMENSIONS

Panel: 19-in rack mountable
Depth: 4.0” (102 mm)
Height:
24458SA-C5E: 1 RMU (1.75” (44.45 mm))
48458SA-C5E: 2 RMU (3.50” (88.90 mm))
72458SA-C5E: 2 RMU (3.50” (88.90 mm))
Jack: 1.67” D x 0.58” W x 1.02” H (42.4 mm x 14.6 mm x 25.8 mm)

  • ENVIRONMENTAL CONDITIONS

Operating Temperature: 14 °F to 140 °F (-10 °C to 60 °C)
Storage Temperature: -40 °F to 158 °F (-40 °C to 70 °C)
Operating RH: 93% Max (non-condensing)

  • COMPLIANCE

ANSI/TIA-568-C.2, IEEE 802.3 ab, FCC Part 68 Subpart F, UL 94V-0, UL 1863, IEC 60603-7

  • APPLICATIONS

X.21, V.11, S0, ISDN, CSMA/CD 10BASE-T, 100BASE-TX, 100BASE-T4, 100BASE-T2, 1000BASE-T, 10GBASE-T, TR 4/16/100, 100BASE-VG, ATM LAN 25/51/155, TP-PMD

  • WARRANTY

 5-year Limited Component
10-year Signamax Base Trunk
15-year Signamax Extended Component
25-year Signamax Cabling System



DOWNLOADS

Information will be available soon

ORDERING INFORMATION



Part Number Description
24458SA-C6C 24-Port Category 6 MT-Series Screened Angled Patch Panel, 1.75”H
48458SA-C6C 48-Port Category 6 MT-Series Screened Angled Patch Panel, 3.50”H
72458SA-C6C 72-Port Category 6 MT-Series Screened Angled Patch Panel, 3.50”H


Panels are supplied as a kit, which includes the panel, black MT-Series unscreened jacks per port count, and cable ties.
For panels with other keystone jack color options contact Customer Service.
