Single-gang brushed stainless steel faceplates allow mounting any combination of keystone jacks and multimedia modules. These faceplates allow for flush mounting of jacks and for a clean appearance. Stainless steel faceplates are ideal for use in environments that require greater durability and a sanitary, easy-to-clean solution.
Plate: stainless steel, JIS SUS 304 (equivalent to EN 1.4301, SAE 304, UNS 30400)
Mounting posts: high-impact thermoplastic, UL94V-0 fire retardant
W: 69.9 mm (2.75 in) H: 114.3 mm (4.50 in)
Mounting screw holes distance: 83.3 mm (3.28 in)
Mounting dimensions: standard keystone footprint
Panel opening: 14.7 mm (0.579 in) × 19.30 mm (0.760 in)
Operating temperature: -10 °C to +60 °C (-14 °F to 140 °F)
Information will be available soon

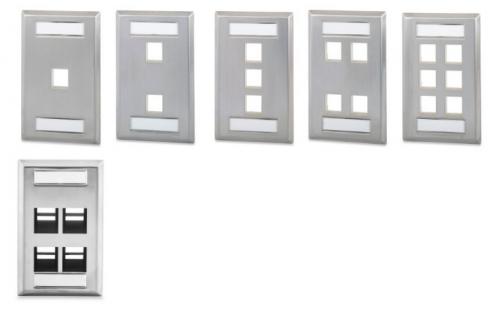

| Part Number | Description | |
| SSKFL-1 | 1-Port Single-Gang Stainless Steel Faceplate with Labeling | |
| SSKFL-2 | 2-Port Single-Gang Stainless Steel Faceplate with Labeling | |
| SSKFL-3 | 3-Port Single-Gang Stainless Steel Faceplate with Labeling | |
| SSKFL-4 | 4-Port Single-Gang Stainless Steel Faceplate with Labeling | |
| SSKFL-6 | 6-Port Single-Gang Stainless Steel Faceplate with Labeling |
| Part Number | Description | |
| SSKFLA-4 | 4-Port Single-Gang Stainless Steel Angled Faceplate with Labeling Windows |
