KEY FEATURES
- Angled – prevent damage and help maintain the bend radius of patch cords
- High-impact thermoplastic, UL94V-0 fire-retardant
- W: 70 mm (2.75 in), H: 114 mm (4.50 in), screw spacing: 83 mm (3.28 in)
Single-Gang Angled Faceplates
OVERVIEW

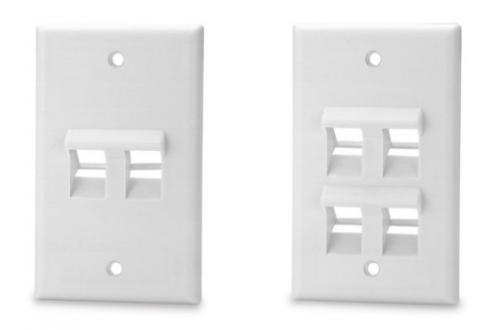

Angled faceplates are available in 2- and 4-port versions. These plates allow an angled patch cord exit to prevent damage and help maintain the bend radius of patch cords.
SPECIFICATIONS
- CONSTRUCTION
High-impact thermoplastic, UL94V-0 fire-retardant
- OVERALL DIMENSIONS
W: 69.9 mm H: 114.3 mm
W: 2.75 in H: 4.50 in
- MOUNTING DIMENSIONS
Mounting screw holes distance: 83.3 mm (3.28 in)
- KEYSTONE MODULE MOUNTING DIMENSIONS
Standard keystone footprint
Panel opening: 14.7 mm (0.579 in) × 19.30 mm (0.760 in)
- OPERATING TEMPERATURE
-10 °C to +60 °C (-14 °F to +140 °F)
DOWNLOADS
Information will be available soon
ORDERING INFORMATION
| Part Number | Description | |
| SKFA-2 | 2-Port Single-Gang Angled Keystone Faceplate, Light Ivory | |
| SKFA-2-WH | 2-Port Single-Gang Angled Keystone Faceplate, White | |
| SKFA-2-DI | 2-Port Single-Gang Angled Keystone Faceplate, Dark Ivory | |
| SKFA-2-GY | 2-Port Single-Gang Angled Keystone Faceplate, Gray | |
| SKFA-2-BK | 2-Port Single-Gang Angled Keystone Faceplate, Black |
| Part Number | Description | |
| SKFA-4 | 4-Port Single-Gang Angled Keystone Faceplate, Light Ivory | |
| SKFA-4-WH | 4-Port Single-Gang Angled Keystone Faceplate, White | |
| SKFA-4-DI | 4-Port Single-Gang Angled Keystone Faceplate, Dark Ivory | |
| SKFA-4-GY | 4-Port Single-Gang Angled Keystone Faceplate, Gray | |
| SKFA-4-BK | 4-Port Single-Gang Angled Keystone Faceplate, Black |
