KEY FEATURES
- Feed-thru socket-to-socket design
- USB Type A USB 2.0 interface
- Gold-plated contacts, nickel-plated body

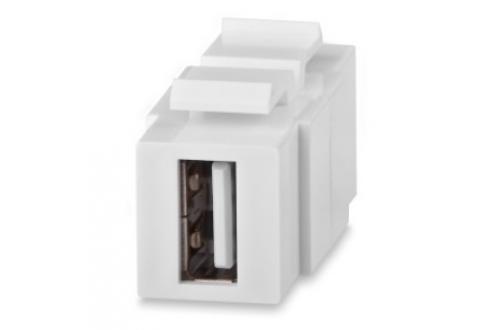

USB Feed-Thru Connector Modules
OVERVIEW
USB feed-thru couples are designed for connecting active equipment to USB cabling and for interconnecting segments of USB cabling. Based on the standard keystone form-factor, they can be used as work area outlets or patch panel ports.
SPECIFICATIONS
- TRANSMISSION MEDIA
USB 2.0 cable
- INTERFACE
USB Type A
- CONSTRUCTION
Body: brass, nickel-plated
Housing: ABS UL94V-0
- ELECTRICAL
Contact resistance: max 30 mOhm
Insulation resistance: min 100 MOhm @ 500 Vdc
Dielectric strength: 500 Vac for 1 min
- FOOTPRINT
Standard keystone footprint
- MOUNTING DIMENSIONS
D:40.0 mm H:19.7 mm W:16.5 mm
D:1.58 in H:0.77 in W:0.65 in
- ENVIRONMENTAL CONDITIONS
Storage: -40 °C to +70 °C (-40 °F to +158 °F)
Operation: -10 °C to +60 °C (+14 °F to +140 °F)
RH (operation): max non-condensing 93 %
- COMPLIANCE
USB 2.0, UL 94V-0
- APPLICATIONS
Data transmission, power delivery, audio streaming
- WARRANTY
5-year limited component warranty
DOWNLOADS
Information will be available soon
ORDERING INFORMATION
| Part Number | Description | |
| CMK-USB | USB A-to-A Feed-Thru Keystone Connector Module, Light Ivory | |
| CMK-USB-WH | USB A-to-A Feed-Thru Keystone Connector Module, White |
