OVERVIEW

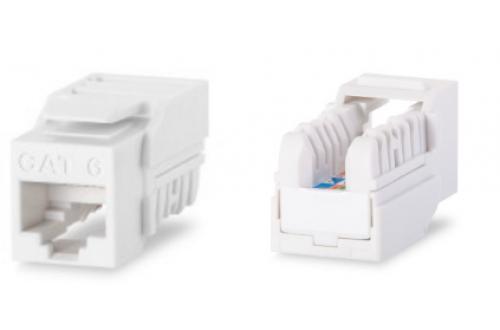

Category 6 EC-Series Unscreened Keystone Jacks have been designed to meet the need for today’s high-bandwidth applications. Category 6 connectors are slim in profile for the highest density applications, and are engineered to exceed all ANSI/TIA-568-C.2 category 6 requirements.
Jacks support both T568A and T568B wiring schemes using an easy-to-read color-code wiring label. The connector contact design provides enhanced plug-to-jack connection integrity, protects against damage caused by insertion of 4- or 6-position plugs and is rated for a minimum of 750 plug insertions providing for the highest level of reliability. Rear 110-type contacts placed at 90 degrees to the module plane are designed to provide improved conductor retention and ease of termination. Special design features allow jack to be terminated with a standard 110 single-position tool or with the Signamax four-pair tool.
SPECIFICATIONS
ANSI/TIA/EIA-568-C.2: meets or exceeds category 6 (1 MHz–250 MHz) component specifications
Unscreened twisted pair (U/UTP)
8p8c (8-position, 8-contact) “RJ45″-style
ANSI/TIA/EIA-568-B.2:T568A & T568B
ISO/IEC 11801 2nd Ed.: 8-position pin/pair assignment (1-2/3-6/4-5/7-8)
22-24 AWG (0.644-0.511 mm)
Insulation resistance: min 500 MOhm @ 100 Vdc
Dielectric withstanding voltage: 1,000 Vdc/ac peak contact to contact @ 60 Hz for 1 min
Spring wire contact resistance: max 20 mOhm
IDC contact resistance: max 2.5 mOhm
Housing: high impact thermoplastic, UL94V-0 fire retardant
Jack spring wire: phosphor bronze alloy plated with 50 μin of gold over 70 μin–100 μin of nickel
IDC: 110 type, phosphor bronze alloy with 100-μin 100% tin (Sn) alloy
Total contact force: min 800 g for 8 wire leads
Retention force: 50 N (11 lbf) for 60±5 s
Mating cycle life: min 750 cycles
Standard keystone footprint
D: 30.0 mm H: 19.3 mm W: 16.9 mm
D: 1.18 in H: 0.76 in W: 0.67 in
Storage: -40 °C to +70 °C (-40 °F to +158 °F)
Operation: -10 °C to +60 °C (+14 °F to +140 °F)
RH (operation): max non-condensing 93 %
ANSI/TIA-568-C.2, IEC 60603-7, FCC Part 68 Subpart F, UL 94V-0
X.21, V.11, S0, ISDN, CSMA/CD 10BASE-T, 100BASE-TX, 100BASE-T4, 100BASE-T2, 1000BASE-T, 10GBASE-T (up to 55 m (180 ft)), TR 4/16/100, 100BASE-VG, ATM LAN 25/51/155, TP-PMD
5-year limited component warranty
10-year Signamax Base Trunk Warranty
15-year Signamax Extended Component Warranty
25-year Signamax Cabling System Warranty
