OVERVIEW

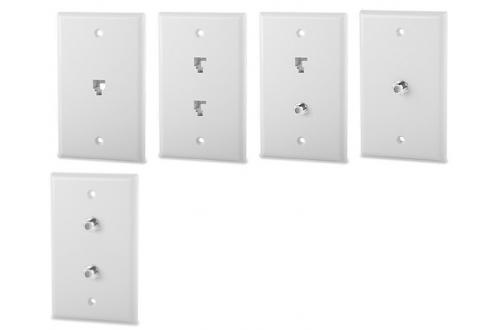

Faceplates are offered in a number of different types for both telephone and video applications. The telephone faceplates are offered in a single or dual RJ-11 6P4C connector with screw terminal termination.

KEY FEATURES

High-impact thermoplastic, UL94V-0 fire-retardant
6P4C (“RJ-11″/”RJ-12″ style) modular jacks pre-wired to screw terminals
F-type socket-to-socket feed-through adapters
Combination of 6P4C and F
1- and 2-port versions
W: 80 mm (3.13 in), H: 124 mm (4.88 in), screw spacing: 83 mm (3.28 in)

SPECIFICATIONS

6P6C CONNECTOR

Body: ABS UL94V-0
Spring wire: phosphor bronze, 50 μin of gold plating over 100 μin of nickel

SCREW TERMINAL

Frame: ABS UL94V-0
Contacts: bronze
Screws: SAE 1010 MFZn-c plating
Lead wires: 0.16×7 strands UL1061
Wiring scheme: P5-yellow, P4-green, P3-red, P2-black

F-TYPE CONNECTOR

Operation voltage: max 250 Vdc
Test voltage: 750 Vdc for 1 min
Feed-through current: max 10 A
Insulation resistance: min 10 MOhm
Capacitance: min 2×1.5 nF
Inductance: min 500 nH
Bandwidth: 1 GHz
Plating: nickel or flash gold

FACEPLATE

Wall plate: ABS UL94V-0
Mounting screw SAE 1010 nickel plating

MOUNTING DIMENSIONS

H: 114.0 mm W: 70.0 mm D: 24.0 mm (F-TYPE) D: 20.0 mm (6P4C)
H: 4.49 in W: 1.58 in D: 0.95 in (F-TYPE) D: 0.80 in (6P4C)

ENVIRONMENTAL CONDITIONS

Storage: -40 °C to +70 °C (-40 °F to +158 °F)
Operation: -10 °C to +60 °C (+14 °F to +140 °F)
RH (operation): max non-condensing 93 %

COMPLIANCE

UL 94V-0

APPLICATIONS

Telephony analog and digital signals, video analog and digital signals

WARRANTY

5-year limited component warranty

DOWNLOADS

Information will be available soon

ORDERING INFORMATION

1-Port RJ11 6P4C Telephone Faceplate

Part Number	Description
SCF-1P64S	1-Port RJ11 6P4C Telephone Faceplate, Light Ivory
SCF-1P64S-WH	1-Port RJ11 6P4C Telephone Faceplate, White
SCF-1P64S-DI	1-Port RJ11 6P4C Telephone Faceplate, Dark Ivory

2-Port RJ11 6P4C Telephone Faceplate

Part Number	Description
SCF-2P64S	2-Port RJ11 6P4C Telephone Faceplate, Light Ivory
SCF-2P64S-WH	2-Port RJ11 6P4C Telephone Faceplate, White
SCF-2P64S-DI	2-Port RJ11 6P4C Telephone Faceplate, Light Ivory

2-Port RJ11 6P4C and F-Type Telephone/Video Faceplate

Part Number	Description
SCF-2P64SF	2-Port RJ11 6P4C and F-Type Telephone/Video Faceplate, Light Ivory
SCF-2P64SF-WH	2-Port RJ11 6P4C and F-Type Telephone/Video Faceplate, White
SCF-2P64SF-DI	2-Port RJ11 6P4C and F-Type Telephone/Video Faceplate, Dark Ivory

1-Port F-Type Video Faceplate

Part Number	Description
SCF-1F	1-Port F-Type Video Faceplate, Light Ivory
SCF-1F-WH	1-Port F-Type Video Faceplate, White
SCF-1F-DI	1-Port F-Type Video Faceplate, Dark Ivory

2-Port F-Type Video Faceplate

Part Number	Description
SCF-2F	2-Port F-Type Video Faceplate, Light Ivory
SCF-2F-WH	2-Port F-Type Video Faceplate, White
SCF-2F-DI	2-Port F-Type Video Faceplate, Dark Ivory
