KEY FEATURES
3.5-mm (1/8-in) miniature phone connector
Socket-to-socket feed-through adapter
Three-contact TRS design

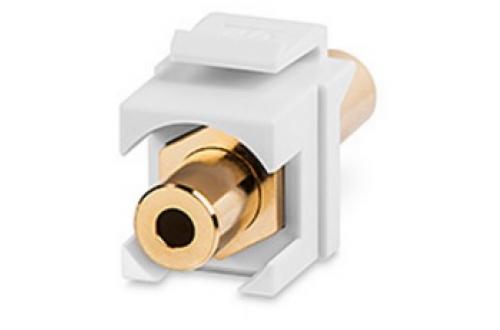

Phone Connector Keystone Module
OVERVIEW
Phone connector keystone module is designed to provide connectivity for low-frequency analog signal transmission systems.
SPECIFICATIONS
CONNECTOR TYPE
3.5-mm (1/8-in) miniature phone connector, three-contact TRS (tip/ring/sleeve)
CONSTRUCTION
Module housing: ABS 94V0
Connector insulation: black engineering thermoplastic
Connector body: phosphor bronze alloy, gold-flashed
Connector nut: brass, gold-flashed
ELECTRICAL
Contact resistance: max 30 mOhm
Insulation resistance: min 100 MOhm @ 500 VDC
Dielectric withstanding voltage: 500 Vac for 1 min
FOOTPRINT
Standard keystone footprint
MOUNTING DIMENSIONS
D 36.00 mm H 19.15 mm W 16.30 mm
D 1.417 in H 0.754 in W 0.642 in
ENVIRONMENTAL CONDITIONS
Storage: -40 °C - +70 °C (-40 °F - +158 °F)
Operation: -10 °C - +60 °C (+14 °F - +140 °F)
RH (operation): max non-condensing 93 %
COMPLIANCE
UL 94V-0
APPLICATIONS
Low-frequency analog signal transmission
WARRANTY
5-year limited component warranty
Download DatasheetORDERING INFORMATION
| Part Number | Description | Add to [?] |
| CMK-PCTRS | 3-mm Audio Feed-Thru Keystone Connector Module, Light Ivory | |
| CMK-PCTRS-WH | 3-mm Audio Feed-Thru Keystone Connector Module, White | |
| CMK-PCTRS-DI | 3-mm Audio Feed-Thru Keystone Connector Module, Dark Ivory | |
| CMK-PCTRS-GY | 3-mm Audio Feed-Thru Keystone Connector Module, Gray | |
| CMK-PCTRS-BK | 3-mm Audio Feed-Thru Keystone Connector Module, Black |
