10 GbE XFP Fiber Modules – 10 km(Special Order)

10 GbE XFP Fiber Modules – 10 km(Special Order)

OVERVIEW

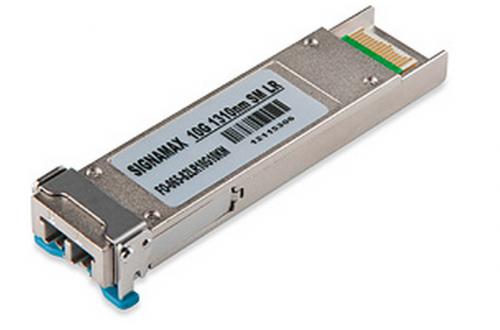

The Signamax 065-82SR10G10KM is a XFP (10 Gigabit Small Form Factor Pluggable) singlemode fiber module that supports 10 Gigabit Ethernet over singlemode fiber cable at distances up to 10 kilometers. It adheres to the IEEE 802.3ae standard for 10 Gigabit Ethernet over singlemode fiber at 1310 nm, and is a costeffective method of providing changeable 10 Gigabit Ethernet singlemode interfaces to switches and media converters equipped with a standard XFP port.

KEY FEATURES

  • RoHS compliant
  • Meets the SFP Multi-Source Agreement (MSA)
  • Up to 10 km link distance
  • Hot pluggable
  • Metal enclosure for low EMI performance
  • Low power dissipation
  • Advanced firmware for system encryption
  • Higher port densities and greater bandwidth



Application

  • High-speed storage area networks.
  • Computer cluster cross-connections.
  • Custom high-speed data pipes.
  • 10GE Storage, 8G Fiber Channel.
  • Inter-rack connection.

SPECIFICATIONS

Part Number

TX/RX
Spectrum

Light
Source

Link
Power Budget

Typical Max.
Distance**

Supply
Voltage

Operating
Temp.

065-82LR10G10KM
   Blue Clasp

LR 1310 nm

DFB LD

6 dBm

10 kilometers

3.3 V

0 ~ 70° C









** Maximum distances attainable on singlemode fiber circuits are dependent upon a circuit’s conditions; i.e., the number of splices and patch panels and the number of bends in the circuit path. For comparison with competing products, please use the Link Power Budget for meaningful comparisons.



DOWNLOADS

DatasheetDatasheet

ORDERING INFORMATION

Part Number

Description

065-82LR10G10KM

10GBaseLR XFP Module 1310 nm – SM/LC, 10 kilometers
