10GbE SFP+ Fiber Modules – 10 km

Overview
Key Features
Specifications
Downloads
Ordering Information

OVERVIEW

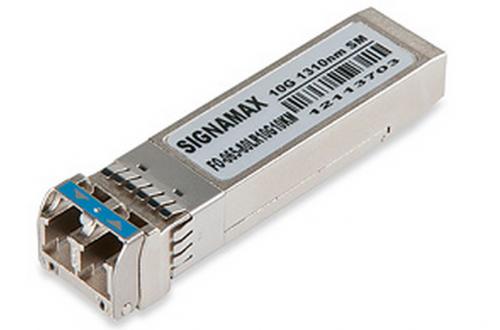

The Signamax 065-80LR10G10KM is a Small Form-factor Pluggable+ (SFP+) singlemode fiber module that supports 10 Gigabit Ethernet over singlemode fiber cable at distances up to 10 kilometers. It adheres to the IEEE 802.3ae standard for 10 Gigabit Ethernet over singlemode fiber at 1310 nm, and is a cost-effective method of providing changeable 10 Gigabit Ethernet singlemode interfaces to switches and media converters equipped with a standard SFP+ slot.

KEY FEATURES

RoHS Compliant
Meets the SFP Multi-Source Agreement (MSA)
Up to 10 km link distance (indicative only)
Hot pluggable
Metal enclosure for low EMI performance
Single 3.3V power supply
Low power dissipation
Digital Diagnostics are externally calibrated

Application

Metro Access Rings
Point-to-Point networking
10GBaseLR
8x/10G Fiber Channel
OC-192 SONET

SPECIFICATIONS

Part Number	TX/RX Spectrum	Light Source	Link Power Budget	Typical Max. Distance**	Supply Voltage	Operating Temp.
065-80LR10G10KM (Blue Clasp)	LR 1310 nm	DFB Laser	6.5 dBm	10km	3.3 V	0 ~ 70° C

** Maximum distances attainable on singlemode fiber circuits are dependent upon a circuit’s conditions; i.e., the number of splices and patch panels and the number of bends in the circuit path. For comparison with competing products, please use the Link Power Budget for meaningful comparisons.

DOWNLOADS

Datasheet

ORDERING INFORMATION

Part Number	Description
065-80LR10G10KM	10GBaseLR SFP+ Module 1310 nm - SM/LC, 10 km
