100BaseFX/BX WDM SFP Fiber Modules – 2 km

Overview
Key Features
Specifications
Downloads
Ordering Information

OVERVIEW

The Signamax 065-73-MWx15 series models are Small Form-factor Pluggable (SFP) multimode fiber modules that support fiber Fast Ethernet or SONET OC-3 / SDH STM-1 over a single strand of multimode fiber cable at distances up to 2 kilometers. There are two types of models in this series: one transmits at 1310 nm and receives at 1550 nm (model 065-73-MWA15), and the other transmits at 1550 nm and receives at 1310 nm (model 065-73-MWB15).

KEY FEATURES

RoHS compliant
Meets the SFP Multi-Source Agreement (MSA)
Up to 2 km link distance
Hot pluggable
Metal enclosure for low EMI performance
Low power dissipation

Application

Metro Access Rings
Point-to-Point networking
1x Fiber Channel
Fiber Fast Ethernet (100Base)
Suitable for Fast Ethernet and SONET OC-3 / SDH STM-1 transmission

SPECIFICATIONS

Part Number	TX/RX Spectrum	Light Source	Link Power Budget	Typical Max. Distance**	Supply Voltage	Operating Temp.

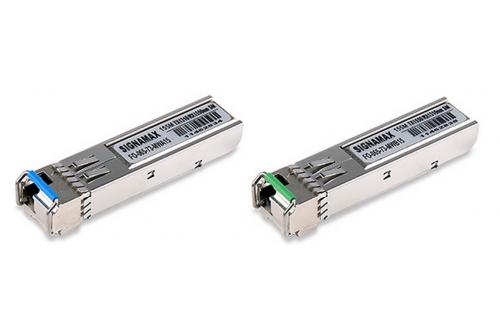

065-73-MWA15 (Blue Clasp)	Tx: 1310 nm Rx: 1550 nm	FP Laser	15 dBm	2 km	3.3 V	0 ~ 70° C
065-73-MWB15 (Green clasp)	Tx: 1550 nm Rx: 1310 nm	FP Laser	15 dBm	2 km	3.3 V	0 ~ 70° C

** Maximum distances attainable on singlemode fiber circuits are dependent upon a circuit’s conditions; i.e., the number of splices and patch panels and the number of bends in the circuit path. For comparison with competing products, please use the Link Power Budget for meaningful comparisons.

DOWNLOADS

Datasheet

ORDERING INFORMATION

Part Number	Description
065-73-MWA15	WDM 155 Mbps SFP Module Tx: 1310 nm / Rx: 1550 nm – MM/LC Simplex, 2 km
065-73-MWB15	WDM 155 Mbps SFP Module Tx: 1550 nm / Rx: 1310 nm – MM/LC Simplex, 2 km
