10/100 to 100FX Industrial PoE+ Media Converters

Overview
Key Features
Specifications
Downloads

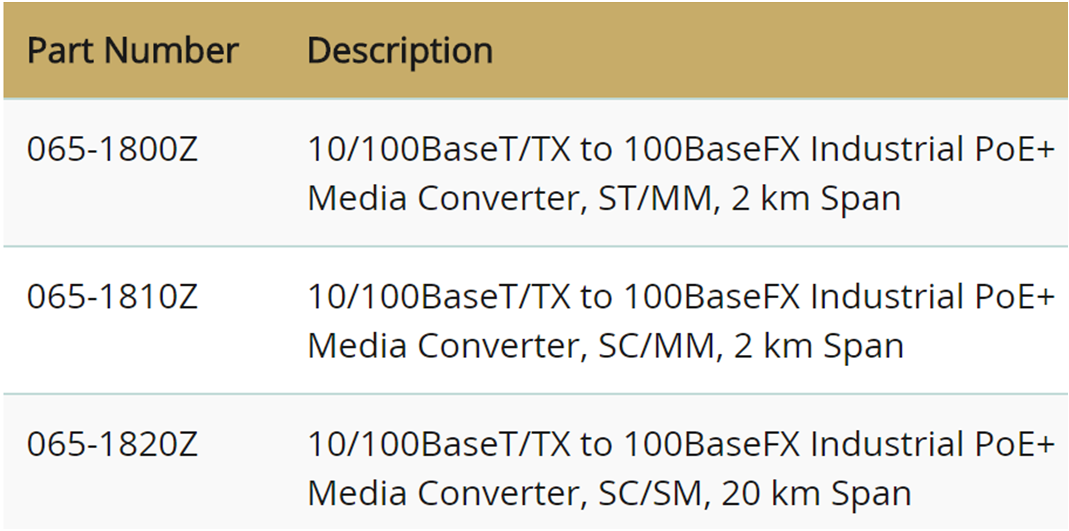

Ordering Information

OVERVIEW

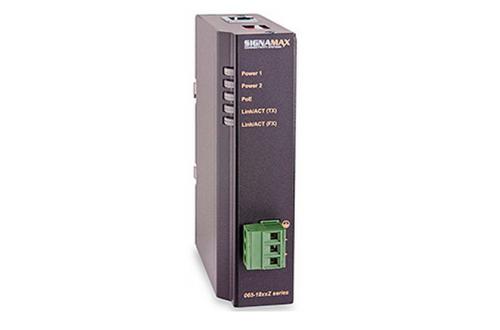

Signamax Connectivity Systems' 065-18xxZ series 10/100 to 100BaseFX PoE+ Power Source Equipment (PSE) Industrial Media Converters have been developed to operate in harsh industrial environments that require ruggedized equipment that can operate in wide temperature extremes.

These media converters are an affordable solution for outdoor environments, transportation roadside systems, shop floors, and other harsh environments where consistent operation at temperature extremes of 14°F to 140°F (-10°C to 60°C, tested from -4°F to 158°F [-20°C to 70°C]) is necessary.

These media converters support and provide power to both IEEE 802.3af PoE and IEEE 802.3at PoE+ Powered Devices such as IP cameras, Access Control Devices, and Wireless Access Points, and are compact, plug-and-play devices that do not require complex user setup. Their 48 V DC terminal block accepts DC power from a local 48 V DC power supply or 48 V DC power distribution system.

KEY FEATURES

Supports IEEE 802.3at PoE+ 30 Watt and IEEE 802.3af PoE 15.4 Watt PSE standards
DIP switch configuration for "Link-Fault-Pass Through" speed, duplex mode
10/100Mbps-Full/Half-duplex, Auto-negotiation, Auto-MDI/MDIX
Supports full wire-speed forwarding rate
Provides 228K bits buffer memory
Industrial operating temperature -10°C to 60°C (14°F to 140°F)
Aluminum case
48 V DC Terminal Block Power Input
Supports DIN-Rail or Panel Mount Installations

SPECIFICATIONS

APPLICABLE STANDARDS

IEEE802.3 10BaseT
IEEE802.3u 100BaseTX / 100BaseFX
IEEE802.3x Flow Control and Back pressure

FIXED PORTS

1 twisted-pair port meeting IEEE 802.3 10BaseT & IEEE 802.3u 100BaseTX standard specifications, Auto MDI/MDI-X and Auto-Negotiation Function supported (all models)
PLUS
1 100Base FX port meeting IEEE 802.3u 100BaseFX standard specifications with ST/MM, 2 km span (Model 065-1800Z)
OR
1 100Base FX port meeting IEEE 802.3u 100BaseFX standard specifications with SC/MM, 2 km span (Model 065-1810Z)
OR
1 100Base FX port meeting IEEE 802.3u 100BaseFX standard specifications with SC/SM, 20 km span (Model 065-1820Z)

TWISTED-PAIR CABLE REQUIREMENTS

Category 5 or better cable, 100 meters maximum distance for 100BaseTX, Category 3 or better cable, 100 meters maximum distance for 10BaseT.

LED STATUS INDICATORS

Per Unit: Power Status (Power)
Per Port: 10/100BaseT/TX port: Link/Activity, Full-duplex/Collision; 100BaseFX port: Link/Activity
PoE: PD connect/PD disconnect

PERFORMANCE

Latency: < 4.2 μs (LIFO)
Throughput @ 100Base: 148,810 pps (64-byte packets)

SWITCH ARCHITECTURE

Store and Forward

FIBER INTERFACE, MULTIMODE MODELS

Type: LED
Wavelength: 1300 nm nominal (1270 nm maximum, 1380 nm minimum)
Maximum Output Power: - 14.0 dBm
Minimum Output Power: - 20.0 dBm
Sensitivity: -33.0 dBm
Maximum Input Power: - 8.0 dBm
Link Power Budget: 13.0 dB

FIBER INTERFACE, SINGLEMODE PN 065-1820Z

Type: MQW Laser
Wavelength: 1300 nm nominal (1260 nm maximum, 1360 nm minimum)
Maximum Output Power: - 7.0 dBm
Minimum Output Power: - 15.0 dBm
Sensitivity: -34.0 dBm
Maximum Input Power: - 7.0 dBm
Link Power Budget: 19.0 dB

POWER INPUT REQUIREMENTS

48 to 57 Volts DC Terminal Block; 48 to 52 VDC input supports up to 15.4 Watts, 52 to 57 VDC input supports up to 30 Watts

Power Consumption:
Media Converter with no PoE/PoE+ device connected: 3.6W Max._ 0.075A @ 48VDC;
When PoE linked with 15.4 Watts IEEE802.3af PD: 19.2 Watts Max.; 0.4A @ 48VDC,
When PoE linked with 30 Watts IEEE 802.3at PoE+ PD: 34.1W Max. 0.62A @ 55VDC

Overload Current Protection: Present

Reverse Polarity Protection: Present

PHYSICAL CHARACTERISTICS

Dimensions: 1.18 in. x 4.33 in. x 2.76 in., W x H x D (30 mm x 110 mm x 70 mm)
Housing: Aluminum case
Weight: 0.55 lb (0.25 kg.)

ENVIRONMENT

Operating Temperature: 14°F to 140°F (-10°C to 60°C)
Storage Temperature: -40°F to 185°F (-40°C to 85°C)
Operating Humidity: 5 to 95% (non-condensing)

CERTIFICATIONS

ISO: Manufactured in an ISO9001 facility

Environmental Test Compliance:
Vibration Resistance (IEC 60068-2-6): 5g @ 10 - 150Hz, Amplitude 0.35mm (Operation/Storage/Transport)
Operation/Storage/Transport Shock (IEC 60068-2-27):
25G @ 11ms (Half-Sine Shock Pulse; Operation)
50G @ 11ms (Half-Sine Shock Pulse: Storage/Transport)
Free Fall: FED STD 101C Method 5007.1 (Free fall w/ package)
- Tested with Cross Weight and Drop High standard table

ESD Standards (IEC 61000-4-2):
Enclosure Contact: +/- 4kV; Criteria B
Enclosure Air: +/- 8kV; Criteria B

Radiated RFI Standards (IEC 61000-4-3):
Enclosure Ports: 10V/m, 80 to 1000MHz; 80% AM

Burst Standards (IEC 61000-4-4):
Signal Ports: + / - 4 KV
D.C. Power Ports: + / - 4 KV

Surge Standards (IEC 61000-4-5):
Signal Ports: + / - 1KV; Line-to-Line
D.C. Power Ports: + / - 0.5KV; Line-to-earth

Induced RFI Standards (IEC 61000-4-6):
Signal Ports: 10 Vrms @ 0.15 - 80MHz; 80% AM
D.C. Power Ports: 10 Vrms @ 0.15 - 80MHz; 80% AM

Magnetic Field Standards (IEC 61000-4-8):
30A/m @ 50, 60Hz

Voltage Dip Standards (IEC 61000-4-11):
AC Power Ports: 30% Reduction for 0.5 period; Criteria B

EMISSIONS

FCC: Part 15 Class A
CE: EN61000-6-4; EN55022; EN61000-3-2; EN61000-3-3

SAFETY

EN61000-6-2

INSTALLATION

Pre-Installed DIN Rail Kit, or panel mounting

WARRANTY

Lifetime
