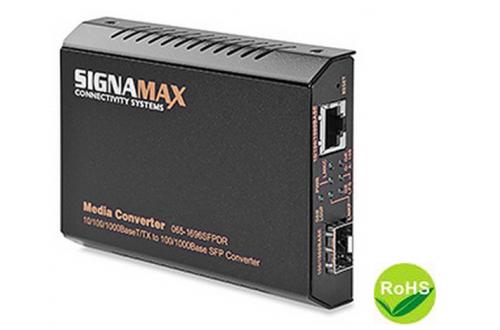

The Signamax 10/100/1000 to 100/1000 OAM Managed SFP Media Converter provides a flexible and intelligent managed solution for long distance connections between legacy 10BaseT and 100BaseTX networks and either 1000Base Gigabit Ethernet fiber or 100Base fiber networks. The built-in 10/100/1000 switch enables the fiber cable connection to operate at 1000 Mbps, while remaining completely 1000BaseSX/LX or 100BaseFX/BX standard-compliant for the fiber optic connection. This OAM Managed Dual Rate Media Converter can be monitored and configured through management via SNMP and a Web-based Graphical User Interface.
The dual-rate fiber converter includes the ability to force the RJ-45 port to 100Base or 10Base full or half-duplex modes where required. The Link Fault Signaling provides a means of propagating a link drop on either port of the media converter to the other port, enabling a connected managed switch to see the link drop and respond to it using Spanning Tree Protocol or another recovery scheme. The built-in switch and its store-and-forward switching architecture performs the network segmentation that allows the maximum fiber distance extension.
IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX
IEEE 802.3ab 1000BaseT
IEEE 802.3z 1000BaseSX
IEEE 802.3z 1000BaseLX
IEEE 802.3x Flow Control
IEEE 802.3ah Operations, Administration, and Maintenance (OAM)
1 – RJ-45 10/100/1000BaseT/TX
Auto-Negotiation, Auto-MDI/MDIX port,
plus 1 – Dual-rate 100Base or 1000Base SFP port.
Per Unit: Power; LFS Status; Full Duplex;OAM Loop
Per RJ-45 Port: Link Copper; Copper port speed
(Green = 1000 Mbps, Amber = 100 Mbps, off = 10 Mbps)
Per SFP Port: Link Fiber
Latency: ≤1.6 μs (FIFO).
MTBF: 1,857,775.35 hours (212.07 years),
calculated via the Part Stress Analysis Method.
Throughput, per port:
@ 1000Base: 1,488,100 pps (64-byte packets);
@ 100Base: 148,810 pps (64-byte packets)
Switch Fabric Speed: 4.0 Gbps (non-blocking, wire speed performance)
Frame Buffer: 12K total
Jumbo Frame Support: 9K packets supported
IEEE 802.1Q Tag-based VLAN supported;
up to 4K active VLANs possible
Supports Q-in-Q Double Tagged Frame Transparent
IEEE 802.3ah OAM supported.
Access Methods: Via SNMP agent and Web browser.
Software Upgrade Capability:
Via TFTP SNMP v1 and v2c Network Management supported.
Supports In-Band Loop Back and Diagnostic.
12 V DC. External 100 – 240 V AC 50/60 Hz. Power supply included.
Operating Temperature: 32°F to 122°F (0°C to 50°C);
Storage Temperature: -14°F to 158°F (-10°C to 70°C)
Relative Humidity: 5% to 95% (non-condensing)
Dimensions:
4.33” L x 3.16” W x 0.91” H (109.2 mm x 83 mm x 23.8 mm)
Weight: 0.33 lb (150 g)
CE, FCC, ROHS, VCCI Class A
Limited Lifetime
|
Part Number |
Description |
|
065-1696SFPDR |
10/100/1000BaseT/TX to Dual-Rate 100Base or 1000Base OAM Managed SFP Media Converter |
Fiber types, 100 or 1000Base speed, and distances spanned are SFP module-dependent. Please see our SFP pages for availability and specification information.
Mounting Options
|
Part Number |
Description |
|
AM10010 |
DIN-Rail Mounting for 065-11xx Series and 065-1696SFPDR Media Converters |
|
065-1185 |
16-Bay Rack Mount Media Converter Chassis, AC |
