10/100/1000BaseT/TX to 1000Base SFP PoE/PoE+ Converter

 10/100/1000BaseT/TX to 1000Base SFP PoE/PoE+ Converter

OVERVIEW

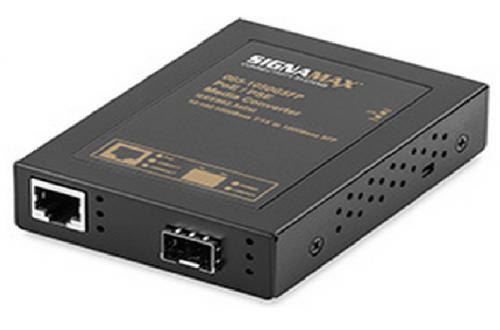

The Signamax 065-1050GSFP media converter is a 10/100/1000BaseT/TX to 1000Base SFP receptacle Power over Ethernet and Power over Ethernet Plus (PoE/PoE+) device, that serves as Power Source Equipment (PSE). This allows the converter to provide power to either IEEE 802.3af PoE standard or IEEE 802.3at PoE+ standard-compliant Powered Devices (PDs) using the twisted pair connection. This ACpowered PoE/PoE+ media converter combines data received over a fiber optic link with up to 25.5 Watts of IEEE 802.3at PoE+ power at the end of a 100 meter Category 5e or better cable run, which the PD can use in lieu of a separate power connector. The 065-1050GSFP media converter is equipped with a 1000Base SFP receptacle, accepting a wide variety of 1000Base SFP modules for its fiber optic interface.



This model is also equipped with PD signature-sensing and power monitoring features. The 065- 1050GSFP's Link Fault Signaling (LFS) capability allows the media converter to monitor both the fiber and copper RX ports for loss of signal. In case of a loss of RX signal on one media port, the converter will automatically disable the TX signal to the other media port, thus passing through the link fault. Far End Fault (FEF) capability enables the converter to stop sending link pulse to the link partner once a loss of the fiber RX signal is encountered; the link partner will then ynchronously stop sending data, thereby preventing the loss of data that would occur when trying to transmit over a failed link. Jumbo Frames up to 9.6 KB are supported. A side-mounted slide switch is provided to enable/disable Link Fault Signaling/Far End Fault.





KEY FEATURES



  •  IEEE 802.3af PoE / IEEE 802.3at PoE+ PSE (Power Source Equipment) compatible, to save power infrastructure costs.
  •  Twisted Pair port supports 10/100/1000BaseT/TX with Full Duplex, Auto-Negotiation, and Auto-MDI/MDIX.
  • Switch-selectable Link Fault Signaling (LFS) with Far End Fault.
  • 1000Base SFP receptacle supports 1000Base SFP modules compliant with the SFP Multi- Source Agreement.
  • External 48 V DC power supply.
  • 9.6 KB Jumbo Frame Support.
  •  RoHS Compliant.

SPECIFICATIONS



  •  APPLICABLE STANDARDS

 IEEE 802.3 10BaseT

 IEEE 802.3u 100BaseTX

 IEEE 802.3ab 1000BaseT

 IEEE 802.3z 1000BaseSX/LX/UX/ZX (1000Base SFP-dependent)

 IEEE 802.3x Flow Control

 IEEE 802.3af Power over Ethernet (PoE)

 IEEE 802.3at Power over Ethernet Plus (PoE+)

  • FIXED PORTS

      1 - RJ-45 10/100/1000BaseT/TX Auto-Negotiation, Auto-MDI/MDIX port; 100 meters maximum distance for

      10/100/1000BaseT/TX over Category 5e or better cable.

      PLUS

      1 - 1000Base SFP module receptacle port. Fiber optic types and distances spanned are SFP-dependent. Required

      1000Base SFP modules are sold separately.

  • LED STATUS INDICATORS

      System: Power

      RJ-45: 100M/Act, 1000M/Act

      SFP: Link/Act

  • PERFORMANCE

      Latency: <4.5 μs (LIFO).

      Throughput @ 1000Base: 1,488,100 pps (64-byte packets)

  • PHYSICAL CHARACTERISTICS

      Case dimensions: 4.02" L x 2.96" W x 0.91" H (102mm x 75mm x 23mm)

      Weight: 0.51 pounds (230 grams).

  • ELECTRICAL CHARACTERISTICS

      Maximum Wattage: 6 Watts (maximum, converter circuitry only), plus the PoE/PoE+ power required to support the

      connected PD.

      PSE Power Feed Support: Mode A "Endpoint", via TP pin 1, 2, 3, 6

      Maximum PoE Wattage Deliverable: Full 25.5 Watts allowable in the IEEE 802.3at standard, at the end of a 100

      meter Category 5e or better cable run.

      External Power Adapter: 48 V DC; 0.83 A.

  • ENVIRONMENTAL CHARACTERISTICS

     Operating Temperature: 32°F to 113°F (0°C to 45° C)

     Storage Temperature: -4°F to 194°F (-20°C to 90°C)

     Relative Humidity: 10 to 90%, non-condensing

  • WARRANTY

     Lifetime
