KEY FEATURES
- 10BaseT, 100BaseTX, and 1000BaseT support.
- PoE (15.4 watts) and PoE+ (30 watts) supported.
- Operating temperature range from -4° F to 140° F (-20° C to 60° C).
- Rugged wall-mountable high-strength molded housing.

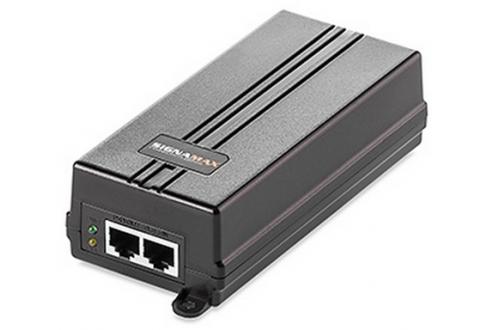

1-Port Gigabit-Capable PoE/PoE+ Power Injector
OVERVIEW
Signamax Connectivity Systems' 065-POEINJ-GA 1-port Gigabit-capable PoE/PoE+ Power Injector is designed to be a compact and cost effective full IEEE 802.3at (30 watts) and IEEE 802.3af (15.4 watts) compliant solution for Network Cameras, IP phones, Outdoor and Indoor Wireless Access Points, and other IP terminal installations. Unlike many competing products, the 065-POEINJ-GA supports a 10/100/1000BaseT/TX RJ45 connection utilizing phantom power over RJ45 pins 4.5, 7, and 8, and supports either the 802.3at (30 watt) and 802.3af (15.4 watt) IEEE PoE and PoE+ standards in a compact package for wall or desktop mounting. The 065-POEINJ-GA injector operates at temperatures ranging from -4° F to 140° F (-20° C to 60° C). This rugged, compact, and cost-effective PoE/PoE+ power injector is the easy answer for individual PoE or PoE+ deployments where PoE switches are not appropriate.
SPECIFICATIONS
- APPLICABLE STANDARDS
IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX
IEEE 802.3ab 1000BaseT
IEEE 802.3af Power over Ethernet (15.4 watts)
IEEE 802.3at Power over Ethernet Plus (30 Watts)
- PORT CONNECTIONS
1 - RJ-45 10/100/1000BaseT/TX inbound data jack; 1 - RJ-45 10/100/1000BaseT/TX outbound data + power jack.
- LED STATUS INDICATORS
Power, Active.
- PASS-THROUGH DATA RATES SUPPORTED
10BaseT, 100BaseTX, or 1000BaseT.
- PHYSICAL CHARACTERISTICS
Dimensions: 5.43 in x 2.56 in x 1.52 in (138 mm x 65 mm x 38.5 mm).
Housing: Molded case.
Weight: 0.39 lb. (168 g.)
- ELECTRICAL CHARACTERISTICS
Input Power: Voltage: 90 to 264 V AC; Current: 750 mA; Frequency: 47 Hz - 63 Hz.
Output Power: 48 V DC ± 2 V DC; 600 mA.
Pin Assignment and Polarity: 4 & 5 (+); 7 & 8 (-).
- ENVIRONMENTAL CHARACTERISTICS
Temperature: Operating: Operating: -4° F to 140° F (-20° C to 60° C); Storage: -22° F to 185° F (-30° C to 85° C).
Relative Humidity: Operating: 35 to 95%, non-condensing; Storage: 10 to 95%, non-condensing.
- RELIABILITY
MTBF: 50,000 hours, @ 25° C.
- WARRANTY
Five years.
DOWNLOADS
DatasheetORDERING INFORMATION
