KEY FEATURES
- Front and rear rack mountable
- Durable steel construction
- Vertical and horizontal cable management
- 1- and 2-RMS sizes
- Rack or any other surface mountable
- 4- and 6-inch depths

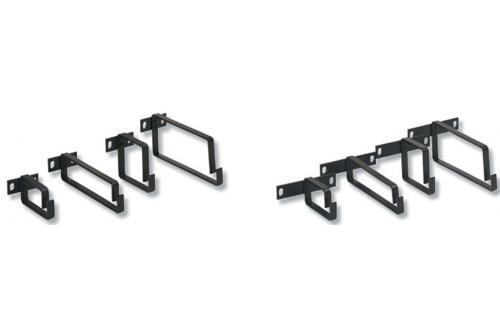

Cable Management Ring Brackets
OVERVIEW
Cable Management Ring brackets can be mounted to the front or rear of a rack or any other surface, to provide both vertical and horizontal cable management.
Brackets can be specified in either one- or two-rack-space sizes, and are offered in 4- and 6-inch depths for accommodating various cable bundle sizes.
SPECIFICATIONS
- Front and rear rack mountable
- Durable steel construction
- Vertical and horizontal cable management
- 1- and 2-RMS sizes
- Rack or any other surface mountable
- 4- and 6-inch depths
DOWNLOADS
Download DatasheetORDERING INFORMATION
| Part Number | Description | |
| CMR-175-A | Cable Management Ring Bracket with 1.75" H x 4" D Horizontal Ring on 1.75" H Rack Mount Bracket, 1 RMS | |
| CMR-175-B | Cable Management Ring Bracket with 2.25" H x 4" D Horizontal Ring on 1.75" H Rack Mount Bracket, 1 RMS | |
| CMR-175-C | Cable Management Ring Bracket with 1.75" H x 6.125" D Horizontal Ring on 1.75" H Rack Mount Bracket, 1 RMS | |
| CMR-175-D | Cable Management Ring Bracket with 2.25" H x 6.125" D Horizontal Ring on 1.75" H Rack Mount Bracket, 1 RMS on 1.75" Bracket |
| Part Number | Description | |
| CMR-350-A | Cable Management Ring Bracket with 1.75" H x 4" D Horizontal Ring on 3.50" H Rack Mount Bracket, 2 RMS | |
| CMR-350-B | Cable Management Ring Bracket with 2.25" H x 4" D Horizontal Ring on 3.50" H Rack Mount Bracket, 2 RMS | |
| CMR-350-C | Cable Management Ring Bracket with 1.75" H x 6.125" D Horizontal Ring on 3.50" H Rack Mount Bracket, 2 RMS | |
| CMR-350-D | Cable Management Ring Bracket with 2.25" H x 6.125" D Horizontal Ring on 3.50" H Rack Mount Bracket, 2 RMS |
