OVERVIEW

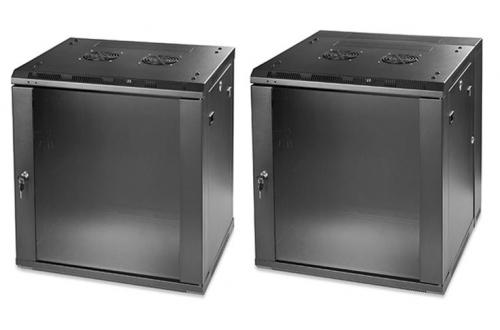

Signamax wall-mount equipment cabinets are a perfect solution for small to medium IT installations, for installations where either space is limited or security requirements exist. Cabinets may also serve as alternative spaces to the telecommunications room or entrance facility.

Designed to accommodate active and passive telecommunications equipment, these cabinets are supplied in two basic versions - single-section and dualsection, and a variety of heights - from 6 to 18 rack-mount units. Removable side doors equipped with a lock allows access to the cabinet contents from left, right or rear. Front door features a lock and toughened glass for easy inspection of cabinet contents and operational status of the installed equipment. An optional set of two fans can be installed to improved active equipment cooling where necessary.

KEY FEATURES

Compliant with CEA 310-E, IEC 297-2, DIN 41491, DIN 4144 standards
Single- and dual-section designs
Heights - from 6 to 18 RMU
Three levels of depth (450 mm (17.7 in), 550 mm (21.7 in), 600 mm (23.6 in))
Cold-rolled steel construction: bearing elements - 1.5 mm (0.06 in), rear panel - 0.8 mm (0.03 in)
60 kg (132 lb) static load
Removable side doors with locks
180-degree-swing toughened-glass front door with lock, also removable
Equipment mounting hardware based on the cage-nut standard - easy replacement of damaged fasteners, protection of mounting flanges
Depth position of the mounting flanges can be adjusted to accommodate equipment with different form factors.
Knockout cable entry slots - top and bottom; additional slots in dual-section cabinets
Pre-fabricated holes and fenders for mounting fan assemblies
High-impact epoxy-powder anticorrosive paint

SPECIFICATIONS

CONSTRUCTION

Material:
bearing frame and flanges: cold-rolled steel, 1.5 mm (0.06 in)
rear panel: cold-rolled steel, 0.8 mm (0.03)
housing frame: cold-rolled steel, 1.2 mm (0.05 in)
front door: toughened glass

MECHANICAL

Static load: 60 kg (132 lb)

MOUNTING DIMENSIONS

COMPLIANCE

CEA 310-E (former EIA-310-D), IEC 297-2, DIN 41491, DIN 4144

WARRANTY

5-year limited component warranty

DOWNLOADS

Download Datasheet

DownloadWEC-S-xx Drawing

Download WEC-D-xx Drawing

ORDERING INFORMATION

Single-section cabinets

Part Number	Description	Add to [?]
WEC-S-06-600/450-BK	Wall-mount equipment cabinet, single section, 6 RMU, W 600 mm D 450 mm, black	Project
WEC-S-09-600/450-BK	Wall-mount equipment cabinet, single section, 9 RMU, W 600 mm D 450 mm, black	Project
WEC-S-12-600/450-BK	Wall-mount equipment cabinet, single section, 12 RMU, W 600 mm D 450 mm, black	Project
WEC-S-15-600/450-BK	Wall-mount equipment cabinet, single section, 15 RMU, W 600 mm D 450 mm, black	Project

Cabinets are supplied with a set of mounting screws/nuts/washers and a wrench.

Dual-section cabinets

Part Number	Description	Add to [?]
WEC-D-06-600/550-BK	Wall-mount equipment cabinet, dual section, 6 RMU, W 600 D 450+100 mm, black	Project
WEC-D-09-600/550-BK	Wall-mount equipment cabinet, dual section, 9 RMU, W 600 D 450+100 mm, black	Project
WEC-D-12-600/550-BK	Wall-mount equipment cabinet, dual section, 12 RMU, W 600 D 450+100 mm, black	Project
WEC-D-15-600/550-BK	Wall-mount equipment cabinet, dual section, 15 RMU, W 600 D 450+100 mm, black	Project
WEC-D-15-600/600-BK	Wall-mount equipment cabinet, dual section, 15 RMU, W 600 D 500+100 mm depth, black	Project
WEC-D-18-600/550-BK	Wall-mount equipment cabinet, dual section, 18 RMU, W 600 D 450+100 mm, black	Project
WEC-D-18-600/600-BK	Wall-mount equipment cabinet, dual section, 18 RMU, W 600 D 500+100 mm depth, black	Project

Cabinets are supplied with a set of mounting screws/nuts/washers and a wrench.

Accessories

Part Number	Description	Add to [?]
WEC-CF-2	Cooling fan assembly, 2 fans, 2-m (6-ft) cord with NEMA 5-15 plug, black	Project
WEC-MH-CN-50	Mounting hardware, screw/cage-nut/washer, 50 sets in a PE bag	Project
