KEY FEATURES
- Mounting standard: EIA/ECA-310-E 19 in
- 10-32 mounting holes on front and rear flanges
- High-strength 6005-T5 aluminum extrusion
- High-impact black anti-corrosive paint

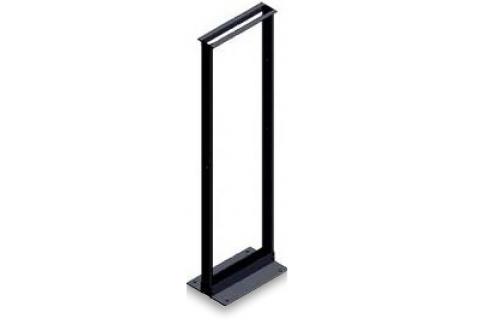

Equipment Racks
OVERVIEW
Equipment racks are designed for 19-inch rack mount equipment. Racks are constructed of aluminum and are available in a variety of standard heights. Each rack is drilled and tapped on both the front and the rear rails with 10-32 holes on EIA spacing. Standard rack finish is black. Racks are packaged knocked down for easy shipment.
SPECIFICATIONS
- CONSTRUCTION
Body parts: Extruded 6063 T6 aluminum
Finish: Electrostatic microfinish paint
- MECHANICAL
Load capacity: 24 RMU: 227 kg (500 lb)
28 RMU: 363 kg (800 lb)
- FOOTPRINT
D 356 mm (14 in) W 559 mm (22 in)
- DIMENSIONS:
|
EXTERNAL DIMENSIONS |
|||
|
RMU |
Height |
Width |
Depth |
|
24 |
1219 mm (~4 ft) |
565 mm (~22 in) |
399 mm (~14 in) |
|
45 |
2134 mm (~7 ft) |
565 mm (~22 in) |
399 mm (~14 in) |
|
INTERNAL DIMENSIONS |
|||
|
RMU |
Height |
Width |
Depth |
|
24 |
1067 mm (42 in) | 448 mm (175/8 in) | 76 mm (3 in) |
|
45 |
1999 mm (79 in) | 448 mm (175/8 in) | 76 mm (3 in) |
|
PACKAGE |
||||
|
RMU |
Height |
Width |
Depth |
Gross weight |
|
24 |
1245 mm (49 in) | 216 mm (8.5 in) | 114 mm (4.5 in) | 8 kg(19 lb) |
|
45 |
2159 mm (85 in) | 165 mm (6.5 in) | 114 mm (4.5 in) | 12.7 kg (28 lb) |
- ENVIRONMENTAL CONDITIONS
Storage: -40 °C – +70 °C (-40 °F – +158 °F)
Operation: -10 °C – +60 °C (+14 °F – +140 °F)
RH (operation): max non-condensing 93 %
- COMPLIANCE
EIA-310D
- WARRANTY
5-year limited component warranty
DOWNLOADS
Download DatasheetORDERING INFORMATION
| Part Number | Description | |
| RR-84B | 45-RMS-High (84") Equipment Rack, Black Finish | |
| RR-48B | 24-RMS-High (48") Equipment Rack, Black Finish |
