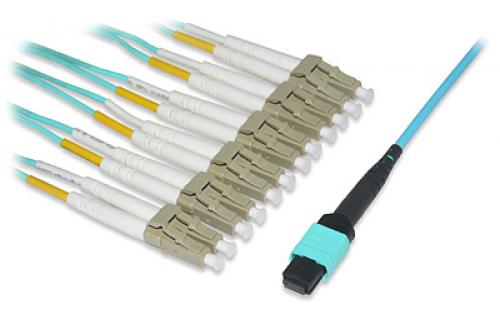

MPO Fan-Out Assemblies

MPO Fan-Out Assemblies

OVERVIEW

12-Fiber MTP Fan-out Assemblies serve as the most effective and sometimes the only solution where a transition from MTP to any other simplex or duplex optical fiber connector is required. Built according to a customer order, available in various configurations fan-out assemblies being terminated and tested in a controlled manufacturing environment not only help to reduce time and cost of installation, but also provide the highest achievable level of transmission performance eliminating termination procedures in the field.

KEY FEATURES

  • OM1, OM2, OM3, OM4 multimode and OS1 singlemode connections
  • 12-fiber connections
  • All connectors are pre-terminated and tested at the factory



SPECIFICATIONS

Information will be available soon.

DOWNLOADS

Information will be available soon

ORDERING INFORMATION



MPO Fan-Out Assemblies

FIBER
CORD



FIBER
COUNT



FIBER
TYPE



CONNECTOR
END 1



CONNECTOR
END 2



FAN-OUT
LENGTH (CM)



LENGTH
(M)

FMF



XX

_

XX



X



X



XX



XX

    12: 12 fibers   M1: OM1    7F: MPO (M)   20: ST

10-99



001-999

    24: 24 fiber   M2: OM2    7M: MPO (M)   40: SC
        M3: OM2   7FA: MPO (F) APC   4A: SC
        M4: OM2    7MA: MPO (M) APC   90: LC
        SM        9A: LC APC


Part Number Example:     FMF12-M3P7F4030035           12-Fiber MPO Fan-Out, OM3 OFNP, MPO(F)-to-SC, 30-cm fan-out, 35 ft.
