KEY FEATURES
- OM1, OM2, OM3, OM4 multimode and OS1 singlemode connections
- 12-fiber connections
- All connectors are pre-terminated and tested at the factory

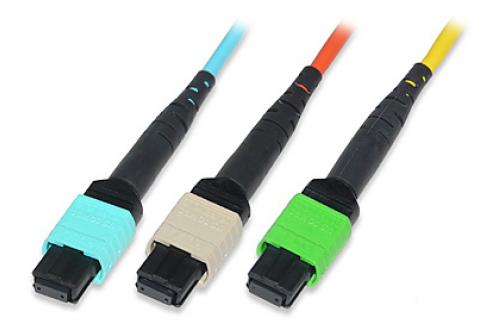

MPO Optical Fiber Assemblies
OVERVIEW
12-Fiber MTP Optical Fiber Assemblies are available in multiple configurations and designed to be used with Signamax Plug-and-Play Pre-Terminated Fiber Cassettes in telecommunications spaces for cross- and interconnections, for connection of active equipment to the cabling. MTP connectors pre-terminated at the factory provide the highest possible level of transmission performance.
SPECIFICATIONS
Information will be available soon.
DOWNLOADS
Information will be available soon
ORDERING INFORMATION
MPO Optical Fiber Assembly Configurator
|
FIBER |
|
FIBER |
_ |
POLA- |
|
FIBER |
|
JACKET |
|
CONNECTOR |
|
CONNECTOR |
|
LENGTH |
|
UNIT OF |
|
FMA |
|
X |
|
X |
|
X |
|
X |
|
X |
|
XXX |
XXX |
|
X |
|
| 12: 12 fiber | A | M1: OM1 | R: OFNR | 7F: MPO (F) | 7F: MPO (F) | 001-999 | F: feet | |||||||||
| 24: 24 fiber | B | M2: OM2 | P: OFNP | 7M: MPO (M) | 7M: MPO (M) | M: meters | ||||||||||
| C | M3: OM3 | L: LSZH | 7FA: MPO (F) APC | 7FA: MPO (F) APC | ||||||||||||
| M4: OM4 | 7MA: MPO (M) APC | 7MA: MPO (M) APC | ||||||||||||||
| SM |
Part Number Example: FMA12-AM3P7F7F035F 12-Fiber Polarity A MPO Assembly, OM3 OFNP, MPO(F)-to-MPO(F), 35 ft.
