OVERVIEW

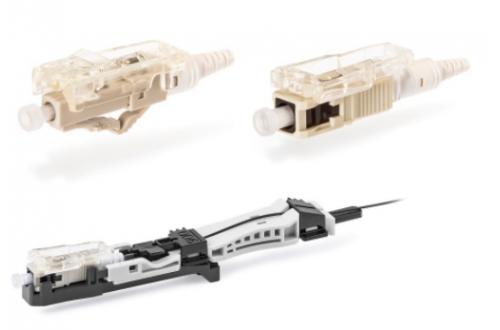

Signamax field-installable pre-polished connectors allow reducing installation time significantly owing to the absence of need to use adhesives and polishing. This unique feature makes possible to eliminate field termination errors and to provide equal quality of connection performed by an experienced installer and apprentice.
Available in multimode (62.5-µm (OM1), 50-µm (OM2), 50-µm laser-optimized (LO) (OM3/OM4), and singlemode SC, and LC versions, field-installable connectors feature a polished ferrule with a factory-installed fiber stub, which splices in the field to distribution cable fibers using an integrated alignment mechanism and index-matching gel. The alignment mechanism is activated with the help of a termination clip, which is supplied with each connector; after successful termination, the clip is removed. Field-installable connectors are designed to terminate 250- and 900-µm buffered fibers, and 2.0- and 3.0-mm jacketed fibers.
SPECIFICATIONS
ANSI/TIA/EIA-568-C.3: insertion and return loss (100% tested)
Optical fiber:
62.5/125-µm multimode (OM1)
50/125-µm multimode (OM2)
50/125-µm laser-optimized (LO) multimode (OM3/OM4)
8-10/125-µm singlemode (OM1/OM2)
Connector type:
ST, SC, LC simplex, multimode, PC
ST, SC, LC simplex, singlemode, UPC
FOCIS (ANSI/TIA/EIA-604) compliant
Body: thermoplastic
Ferrule: ceramic- thermoplastic strain relief
Strain relief boot: thermoplastic
Return loss:
MM: maximum 30 dB @ 20 °C (68 °F)
SM:typical 56 dB @ 20 °C (68 °F), maximum 45 dB @ 20 °C (68 °F)
Insertion loss:
MM:typical 0.1 dB, maximum 0.5 dB
SM:typical 0.2 dB, maximum 0.5 dB
Operation temperature: -40 °C to +75 °C (-40 °F to +167 °F)
Humidity: 95 % RH (non-condensing)
ANSI/TIA-568-C.3, ISO/IEC 11801 2nd Ed., CENELEC EN 50173, UL94V-0
| |
FDDI PMD ANSI X3.166 |
|
10BASE-SX |
|
100BASE-SX
100BASE-FX |
|
1000BASE-SX
1000BASE-LX |
|
10GBASE-S
10GBASE-LX4
10GBASE-LRM |
|
Fibre Channel 100-MX-SN-I
Fibre Channel 200-MX-SN-I
Fibre Channel 400-MX-SN-1
Fibre Channel 1200-MX-SN-1 |
5-year limited component warranty
10-year Signamax Link/Channel Warranty
15-year Signamax Extended Component Warranty
25-year Signamax Cabling System Warranty
DOWNLOADS
Information will be available soon
ORDERING INFORMATION
SC Pre-Polished Optical Fiber Connectors
| Part Number |
Description |
|
| FPC6-SC06-02 |
SC OM1 Pre-Polished Optical Fiber Connector, Beige (6-Pack) |
|
| FPC6-SC05-02 |
SC OM2 Pre-Polished Optical Fiber Connector, Black (6-Pack) |
|
| FPC6-SC51-02 |
SC OM3 Pre-Polished Optical Fiber Connector, Aqua (6-Pack) |
|
| FPC6-SC09-02 |
SC SM Pre-Polished Optical Fiber Connector, Blue (6-Pack) |
|
| FPC6-SCAA-02 |
SC SM APC Pre-Polished Optical Fiber Connector, Green (6-Pack) |
|
| Part Number |
Description |
|
| FPC12-SC06-02 |
SC OM1 Pre-Polished Optical Fiber Connector, Beige (12-Pack) |
|
| FPC12-SC05-02 |
SC OM2 Pre-Polished Optical Fiber Connector, Black (12-Pack) |
|
| FPC12-SC51-02 |
SC OM3 Pre-Polished Optical Fiber Connector, Aqua (12-Pack) |
|
| FPC12-SC09-02 |
SC SM Pre-Polished Optical Fiber Connector, Blue (12-Pack) |
|
| FPC12-SCAA-02 |
SC SM APC Pre-Polished Optical Fiber Connector, Green (12-Pack) |
|
LC Pre-Polished Optical Fiber Connectors
| Part Number |
Description |
|
| FPC6-LC06-02 |
LC OM1 Pre-Polished Optical Fiber Connector, Beige (6-Pack) |
|
| FPC6-LC05-02 |
LC OM2 Pre-Polished Optical Fiber Connector, Black (6-Pack) |
|
| FPC6-LC51-02 |
LC OM3 Pre-Polished Optical Fiber Connector, Aqua (6-Pack) |
|
| FPC6-LC09-02 |
LC SM Pre-Polished Optical Fiber Connector, Blue (6-Pack) |
|
| Part Number |
Description |
|
| FPC12-LC06-02 |
LC OM1 Pre-Polished Optical Fiber Connector, Beige (12-Pack) |
|
| FPC12-LC05-02 |
LC OM2 Pre-Polished Optical Fiber Connector, Black (12-Pack) |
|
| FPC12-LC51-02 |
LC OM3 Pre-Polished Optical Fiber Connector, Aqua (12-Pack) |
|
| FPC12-LC09-02 |
LC SM Pre-Polished Optical Fiber Connector, Blue (12-Pack) |
|
Optional Assembly Jig
| Part Number |
Description |
|
| FPC-JIG-02-SC |
SC Connector Assembly Jig |
|
| FPC-JIG-02-LC |
LC Connector Assembly Jig |
|
