KEY FEATURES
- ST, SC, LC, and MT-RJ
- Phosphor bronze and zirconia ceramic sleeves
- All adapters are provided with retaining clips, screw-mounting seats, or with a retainer ring
- Standard color-coded
Optical Fiber Adapters
OVERVIEW

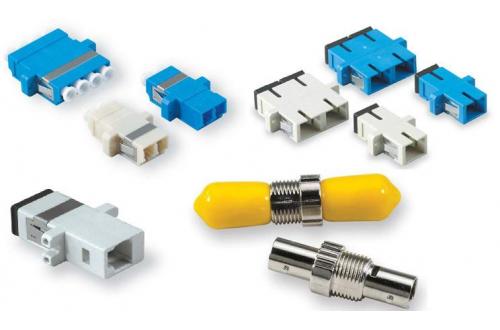

Signamax offers a wide variety of optical fiber adapters including ST, SC, LC, and MT-RJ. Our ST and SC simplex and duplex adapters are available with a phosphor bronze sleeve for multimode applications and zirconia ceramic sleeve for singlemode requirements. The LC adapter fits the same cutout size as a simplex SC adapter and provides for higher termination densities. It is available in both multimode and singlemode versions. Our MT-RJ adapter is about 1/3 the size as a duplex SC adapter providing the same increased density as the LC.
All SC, LC, and MT-RJ adapters are provided with retaining clips for easy, snap-in mounting, and, additionally, with screw-mounting seats; ST adapters are instrumented with a retainer ring. All adapters with plastic bodies (SC-, LC-, and MT-RJ-type) are color-coded per ANSI/TIA-568-C.3 - 62.5- and 50-µm multimode adapters are beige in color, 50-µm multimode OM3 - aqua, singlemode PC and UPC - blue, singlemode APC - green.
SPECIFICATIONS
Information will be available soon.
DOWNLOADS
Information will be available soon
ORDERING INFORMATION
ST Fiber Adapters
| Part Number | Description | |
| FA-ST02 | ST MM Adapter, Phosphor Bronze Sleeve | |
| FA-ST03 | ST SM Adapter, Zirconia Ceramic Sleeve |
|
SC Fiber Adapters
| Part Number | Description | |
| FA-SCS02-B | SC Simplex MM Adapter, Phosphor Bronze Sleeve, Beige | |
| FA-SCS03-A | SC Simplex MM Adapter, Zirconia Ceramic Sleeve, Aqua | |
| FA-SCS03-BU | SC Simplex SM Adapter, Zirconia Ceramic Sleeve, Blue | |
| FA-SCS04-GN | SC Simplex SM APC Adapter, Zirconia Ceramic Sleeve, Green | |
| FA-SCD02-B | SC Duplex MM Adapter, Phosphor Bronze Sleeve, Beige | |
| FA-SCD03-A | SC Duplex MM Adapter, Zirconia Ceramic Sleeve, Aqua | |
| FA-SCD03-BU | SC Duplex SM Adapter, Zirconia Ceramic Sleeve, Blue | |
| FA-SCD04-GN | SC Duplex SM APC Adapter, Zirconia Ceramic Sleeve, Green |
LC Fiber Adapters
| Part Number | Description | |
| FA-LCD02-B | LC Duplex MM Adapter, Phosphor Bronze Sleeve, Beige | |
| FA-LCD03-A | LC Duplex MM Adapter, Zirconia Ceramic Sleeve, Aqua | |
| FA-LC-DX-ZR-NF-BL | LC Duplex SM Adapter, Zirconia Ceramic Sleeve, No Flange, Blue | |
| FA-LCQ02-B | LC Quad MM Adapter, Phosphor Bronze Sleeve, Beige | |
| FA-LC-QX-ZR-NF-AQ | LC Quad MM Adapter, Zirconia Ceramic Sleeve, Aqua | |
| FA-LCQ03-BU | LC Quad SM Adapter, Zirconia Ceramic Sleeve, Blue |
|
MT-RJ Fiber Adapter
| Part Number | Description | |
| FA-MTRJ-B | MTRJ MM/SM Adapter, Beige |
