Wall mount optical fiber enclosures are ideal in small installations and/or where rack and cabinet mounting is not feasible. Most popu-lar applications include demarcation and consolidation points, horizontal mini cross-connects, centralized optical architecture transi-tion points, etc. Physical protection of such connections and storage of fiber slack are also wall mount enclosure major functions. Sig-namax wall mount optical fiber enclosures termination density ranges between 6 and 48 fiber connections depending on the enclosure capacity (2 or 4 adapter plates) and optical fiber connectors used.
Modular design of Signamax optical fiber adapter plates allows creating flexible connection patterns based on 6-, 8-, 12-, 16- and 24-fiber ST, SC, LC and MT-RJ connector plates, which can be arranged in 2- and 4-adapter groups in any available connector combina-tion. Adapter plates mount easily by means of plunger locks ("pushpins"). All enclosures feature front access hinged doors; two ver-sions are equipped with additional lockable security doors. Internal cable anchor points and fiber slack management mechanisms en-sure reliable cable fixing, safe cable/fiber tension and bend radii.
Steel case and high-impact black epoxy-powder anticorrosive paint provide excellent protection of optical fiber connections. Optional optical fiber splice trays/cassettes are available when passive uniform interconnection or transfer from buffered to jacketed fibers are required. Enclosures are supplied with a complete set of fastening elements and installation guidelines.
Die steel
High-impact black epoxy-powder anticorrosive paint
WFE2S-B:
Height 259.1 mm (10.2 in)
Width 304.8 mm (12 in)
Depth 88.9 mm (3.5 in)
WFE4S-B:
Height 304.8 mm (12 in)
Width 304.8 mm (12 in)
Depth 88.9 mm (3.5 in)
5-year limited component warranty
10-year Signamax Link/Channel Warranty
15-year Signamax Extended Component Warranty
25-year Signamax Cabling System Warranty
Information will be available soon
| Part Number | Description | |

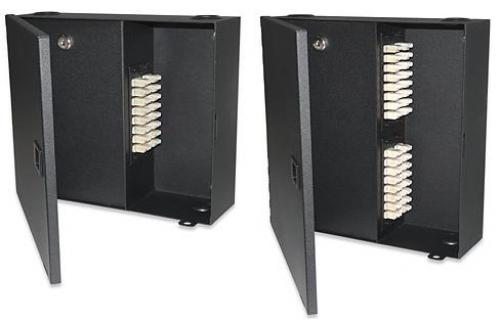

| WFE2S-B | 12- to 48-Fiber Wall Mount Optical Fiber Enclosure w/Security Door Accepts 2 Adapter Plates. Dimensions: 10.2"H x 12"W x 3.5"D | |
| WFE4S-B | 24- to 96-Fiber Wall Mount Optical Fiber Enclosure w/Security Door Accepts 4 Adapter Plates. Dimensions: 12"H x 12"W x 3.5"D |
