OVERVIEW

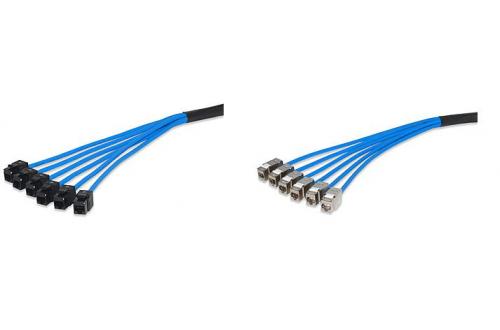

Pre-terminated Category 5e Trunk Assemblies help to reduce significantly both time and cost of a cabling installation. Terminated and tested in a controlled manufacturing environment, cut to the customer pre-ordered lengths, and ready to install in a patch panel, trunk assemblies eliminate all these operations in the field making your job easy and efficient. Trunk cable assemblies can be provided in an unscreened (U/UTP) and screened (F/UTP) versions in a jack-to-jack, jack-to-plug, or jack-to-blunt cut configurations to support the widest range of applications. Cables can be used with any Signamax field-configurable patch panel (screened trunk cables cannot be used with 48U-HDMMP-1R).
SPECIFICATIONS
ANSI/TIA-568-C.2: meets or exceeds category 5e (1-100 MHz) permanent link specifications
NOTE: All cable trunks require field testing after installation
Unscreened 100-Ohm twisted pair (U/UTP)
Screened 100-Ohm twisted pair (F/UTP)
8p8c (8-position, 8-contact) "RJ45" style, keystone design
ANSI/TIA-568-C.2: T568B
24 AWG, solid copper
Insulation resistance: min 500 MOhm @ 100 Vdc
Dielectric withstanding voltage: 1,000 Vdc/ac peak contact-to-contact @ 60 Hz for 1 min
Spring wire contact resistance: max 20 mOhm
IDC contact resistance: max 2.5 mOhm
Spark test: 2,000 ± 250 Vac
Dielectric strength: 2,500 Vdc / 3 seconds
Insulation resistance: min 150 MOhm/km (46 MOhm/kft)
Conductor resistance: max 9.38 Ohm / 100 m (328 ft) @ 20 °C (68 °F)
Resistance unbalance: max 2 %
Capacitance unbalance: max 160 pF / 100 m (328 ft)
Mutual capacitance: max 5,600 pF / 100 m (328 ft)
Insulation resistance: min 500 MOhm @ 100 Vdc
Dielectric withstanding voltage: 1,000 Vdc/ac peak contact-to-contact @ 60 Hz for 1 min
Contact resistance: max 20 mOhm
Current rating: see figure
Housing:
unscreened: high-impact thermoplastic, UL94V-0 fire-retardant
screened: zinc-alloy fully shielded, grounding post for 2.5 x 0.5-mm (0.110 x 0.020-in) female disconnect
Jack spring wire: phosphor bronze alloy plated with 50 μin of gold over 70-100 μin of nickel
IDC: 110 type, phosphor bronze alloy with 100-μin 100% tin (Sn) alloy
- MOUNTING DIMENSIONS - JACK
unscreened: D 30.00 mm H 19.30 mm W 16.90 mm (D 1.181 in H 0.760 in W 0.665 in)
screened: D 42.40 mm H 25.80 mm W 16.90 mm (D 1.669 in H 1.016 in W 0.665 in)
- CONSTRUCTION - U/UTP CABLE
CONDUCTOR:
Material: bare copper
Size: 24 AWG
Construction: 1/0.508 ± 0.02 mm (1/0.0200 ± 0.001 in)
INSULATION:
Material: CMR- or CMP-rated thermoplastic
Thickness: max average: 0.201 mm (0.0079 in), min at any point: 0.141 mm (0.0056 in)
Diameter: 0.91 ± 0.06 mm (0.036 ± 0.002 in)
Color coding:
blue/white-blue
orange/white-orange
green/white-green
brown/white-brown
Elongation: min 300 %
Tensile strength: min 1.682 kg/mm2 (0.0058 psi)
SHEATH:
Material: CMR- or CMP-rated thermoplastic
Diameter: 5.2 ± 0.3 mm (0.21 ± 0.01 in)
Color: see ORDERING INFORMATION
Elongation: min 100 %
Tensile strength: min 1.407 kg/mm2 (0.005 psi)
Thickness: average: 0.50 mm (0.020 in), min at any point: 0.45 mm (0.018 in)
Aging: at 100°C for 168 hrs - min elongation retention: 50 %, min tensile strength retention: 75 %
- CONSTRUCTION - F/UTP CABLE
CONDUCTOR:
Material: bare copper
Size: 24 AWG
Construction: 1/0.515 ± 0.02 mm (1/0.0203 ± 0.001 in)
INSULATION:
Material: CMR- or CMP-rated thermoplastic
Diameter: 1.03 ± 0.02 mm (0.041 ± 0.001 in)
Color coding:
blue/white-blue
orange/white-orange
green/white-green
brown/white-brown
Elongation min 300 %
Tensile strength: min 1.682 kg/mm2 (0.0058 psi)
SHEATH:
Material: CMR- or CMP-rated thermoplastic
Diameter: 6.3 ± 0.3 mm (0.25 ± 0.01 in)
Color: see ORDERING INFORMATION
Elongation: min 100 %
Tensile strength: min 1.407 kg/mm2 (0.005 psi)
SCREEN:
PET tape: 0.025 mm (0.0010 in) thickness
Aluminum/PET tape: 0.050 mm (0.0020 in) thickness
Tinned copper drain wire: 0.46 mm (0.018 in) diameter
Assembly: FCC Part 68 Subpart F
Housing: UL listed 94V-0 flame retardant polycarbonate
IDC blades: phosphor bronze, min 50 μin of gold plating over 100 μin of nickel in contact area
Total contact force: min 800 g for 8 wire leads
Retention force: 50 N (11 lbf) for 60 ± 5 s
Mating cycle life: min 750 cycles
Tensile strength: > 400 N (90 lbf)
Minimum bend radius: 25 mm (1 in)
Retention: 50 N (11 lbf) for 60±5 s
Mating cycle life: min 750 cycles
Tensile strength: ≥ 20 N per wire
Storage: -40 °C - +70 °C (-40 °F - +158 °F)
Operation: -10 °C - +60 °C (+14 °F - +140 °F)
RH (operation): max non-condensing 93 %
ANSI/TIA-568-C.2, IEC 60603-7, IEC 61156-6, IEC 60332-1-2, FCC Part 68 Subpart F, UL 94V-0, UL 444, UL 1666
X.21, V.11, S0, ISDN, CSMA/CD 10BASE-T, 100BASE-TX, 100BASE-T4, 100BASE-T2, 1000BASE-T, TR 4/16/100, 100BASE-VG, ATM LAN 25/51/155, TP-PMD
5-year limited component warranty
10-year Signamax Link/Channel Warranty
15-year Signamax Extended Component Warranty
25-year Signamax Cabling System Warranty
ORDERING INFORMATION
| Part Number |
Description |
| 6L-C5E-JJ-R-FXXX |
Category 5e 6-Leg Trunk Cable, Jack-to-Jack, Unscreened (U/UTP) Cable, CMR |
| 6L-C5E-JP-R-FXXX |
Category 5e 6-Leg Trunk Cable, Jack-to-Plug, Unscreened (U/UTP) Cable, CMR |
| 6L-C5E-JB-R-FXXX |
Category 5e 6-Leg Trunk Cable, Jack-to-Open, Unscreened (U/UTP) Cable, CMR |
| 6L-C5ES-JJ-R-FXXX |
Category 5e 6-Leg Trunk Cable, Jack-to-Jack, Screened (F/UTP) Cable, CMR |
| 6L-C5ES-JP-R-FXXX |
Category 5e 6-Leg Trunk Cable, Jack-to-Plug, Screened (F/UTP) Cable, CMR |
| 6L-C5ES-JB-R-FXXX |
Category 5e 6-Leg Trunk Cable, Jack-to-Open, Screened (F/UTP) Cable, CMR |
For length substitute XXX for length in feet. Minimum length is 10 ft. Maximum length is 295 ft.
Unscreened cable color is blue. Screened cable is gray. Other colors are available.
Standard cable is straight cut for either left or right cable exit. Staggered cut cables are available.
For riser-rated (CMP) cable substitute P for R in P/N.
