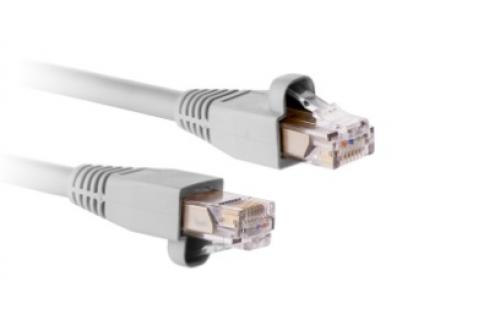

The Signamax Category 6 26 AWG Screened Patch Cords have been designed to meet the need for today’s high-bandwidth applications. These patch cords incorporate a slim profile snag-free boot design which protects the plug latch and offers greater flexibility. The cords are 100% transmission tested and support category 6 component level performance.
Manufactured using ETL verified 26 AWG stranded cable design to support a greater service life. Assembled in a controlled environment to ensure consistent quality, these patch cords provide reliable performance when mated with any category 6 connecting hardware and deliver supreme performance for network cabling systems.
ANSI/TIA-568-C.2: meets or exceeds category 6 (1-250 MHz) specifications
ANSI/TIA-568-C.2: T568A & T568B
ISO/IEC 11801 2nd Ed.: 8-position pin/pair assignment (1-2/3-6/4-5/7-8)
Insulation Resistance: Min 500 MOhm @ 100 Vdc
Dielectric Withstanding Voltage:
1,000 Vdc/ac peak contact-to-contact @ 60 Hz for 1 min
1,500 Vdc/ac peak contact-to-panel @ 60 Hz for 1 min
Contact Resistance: Max 20 mOhm
Current Rating: Refer to downloadable spec sheet.
Assembly: 4 pairs, 7 strands 26 AWG, U/FTP
Insulation: High density polyethylene
Plug Housing: UL listed 94V-0 flame retardant polycarbonate
IDC Blades: Phosphor bronze, min 50 μin of gold plating over 100 μin of nickel in contact area
Screen: Brass alloy plated with 100 Iin of nickel
Jacket:
Dimensions: Diameter < 0.25 in (6.35 mm)
Material: Flame retardant PVC compound
Retention: 50 N (11 lbf) for 60 ± 5 s
Mating Cycle Life: Min 750 cycles
Tensile Strength: ≥ 20 N per wire
Operating Temperature: 14 °F to 140 °F (-10 °C to 60 °C)
Storage Temperature: -40 °F to 158 °F (-40 °C to 70 °C)
Operating RH: 93% Max (non-condensing)
ANSI/TIA/EIA-568-C.2, ISO/IEC 11801 2nd Ed., FCC Part 68, UL 1863, UL 94V-0
X.21, V.11, S0, ISDN, CSMA/CD 10BASE-T, 100BASE-TX, 100BASE-T4, 100BASE-T2, 1000BASE-T, 10GBASE-T, TR 4/16/100, 100BASE-VG, ATM LAN 25/51/155, TP-PMD
5-year Limited Component
10-year Signamax Base Trunk
15-year Signamax Extended Component
25-year Signamax Cabling System
| Part Number | Description | |
| C6CS-314GY-3FB | Category 6 Screened Patch Cords w/Snag-Proof Boots 3 FT. | |
| C6CS-314GY-5FB | Category 6 Screened Patch Cords w/Snag-Proof Boots 5 FT. | |
| C6CS-314GY-7FB | Category 6 Screened Patch Cords w/Snag-Proof Boots 7 FT. | |
| C6CS-314GY-10FB | Category 6 Screened Patch Cords w/Snag-Proof Boots 10 FT. | |
| C6CS-314GY-15FB | Category 6 Screened Patch Cords w/Snag-Proof Boots 15 FT. | |
|
C6CS-314GY-20FB |
Category 6 Screened Patch Cords w/Snag-Proof Boots 20 FT. | |
| C6CS-314GY-25FB | Category 6 Screened Patch Cords w/Snag-Proof Boots 25 FT. |
Standard cable color is gray. Additional colors and lengths are available for special order. Contact Customer Service.
