Signamax continues to set the standard for high-quality, high-performance patch cords with two series of category 6 patch cords. Our category 6 cords are 100% transmission tested to component performance as specified in ANSI/TIA-568-C.2. Assembled in a con-trolled environment using advanced manufacturing techniques to ensure consistent quality, these patch cords provide exceptional performance when mated with our category 6 connecting hardware.
Our Channel-Level Category 6 cords provide an excellent level of performance and are designed for less demanding applications. These cords are 100% tested in a 4-connector channel configuration to ensure consistent performance.

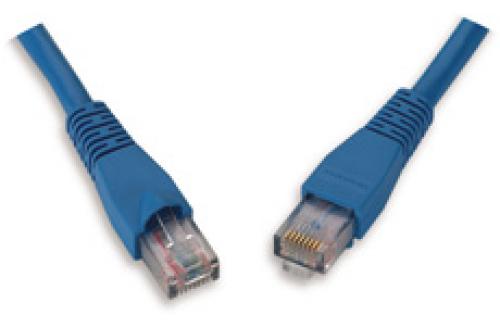

Signamax category 6 patch cords incorporate slim-profile snag-free boots, which protect the plug latch, and a flexible, but durable cable strain relief and are compatible with both T568A and T568B wiring schemes. Category 6 Channel-Level patch cords are manu-factured using ETL-verified stranded cable designed for greater flexibility and service life and are available in eight popular colors and a variety of standard lengths.
ANSI/TIA/EIA-568-C.2: category 6 (1-250 MHz) channel specifications
4-pair stranded unscreened twisted pair (UTP)
ANSI/TIA/EIA-568-C.2: T568A & T568B
ISO/IEC 11801 2nd Ed.: 8-position conductor/pair assignment (1-2/3-6/4-5/7-8)
Jacket diameter: < 6.35 mm (0.25 in)
Construction: 4 pairs, 7 strands 26 AWG, UTP,
high density polyethylene insulation,
fire retardant PVC compound jacket
Assembly: FCC Part 68 Subpart F
Housing: UL listed 94V-0 flame retardant polycarbonate
IDC blades: phosphor bronze, min 50 μin of gold plating over 100 μin of nickel in contact area
Retention: 50 N (11 lbf) for 60±5 s
Mating cycle life: min 750 cycles
Tensile strength: ≥ 20 N per wire
Insulation resistance: min 500 MOhm @ 100 Vdc
Dielectric withstanding voltage: 1,000 Vdc/ac peak contact to contact @ 60 Hz for 1 min
Contact resistance: max 20 MOhm
Storage: -40 °C-+70 °C (-40 °F-+158 °F)
Operation: -10 °C-+60 °C (+14 °F-+140 °F)
RH (operation): max non-condensing 93 %
ANSI/TIA/EIA-568-C.2, ISO/IEC 11801 2nd Ed., FCC Part 68, UL 1863, UL94V-0
X.21, V.11, S0, ISDN, CSMA/CD 10BASE-T, 100BASE-TX, 100BASE-T4, 100BASE-T2, 1000BASE-T, TR 4/16/100, 100BASE-VG, ATM LAN 25/51/155, TP-PMD
5-year limited component warranty
| Part Number | Description | |
| C6-115CC-1FB | Category 6 Channel-Level Patch Cord w/Snag-Proof Boot, xx color, 1 FT. | |
| C6-115CC-3FB | Category 6 Channel-Level Patch Cord w/Snag-Proof Boot, xx color, 3 FT. | |
| C6-115CC-5FB | Category 6 Channel-Level Patch Cord w/Snag-Proof Boot, xx color, 5 FT. | |
| C6-115CC-7FB | Category 6 Channel-Level Patch Cord w/Snag-Proof Boot, xx color, 7 FT. | |
| C6-115CC-10FB | Category 6 Channel-Level Patch Cord w/Snag-Proof Boot, xx color, 10 FT. | |
| C6-115CC-14FB | Category 6 Channel-Level Patch Cord w/Snag-Proof Boot, xx color, 14 FT. | |
| C6-115CC-25FB | Category 6 Channel-Level Patch Cord w/Snag-Proof Boot, xx color, 25 FT. | |
| C6-115CC-50FB | Category 6 Channel-Level Patch Cord w/Snag-Proof Boot, xx color, 50 FT. | |
| C6-115BK-100FB | Category 6 Channel-Level Patch Cord w/Snag-Proof Boot, Black, 100 FT. |
For cable color substitute CC for color in P/N , Other length are available.
-BK(Black) / -BU(Blue) / -GN(Green) / -GY(Gray) / -OR(Orange) / -RD(Red) / -WH(White) / -YE(Yellow)
