KEY FEATURES
- SC and LC connections
- Available in 48-port (48- and 96-fiber) size
- Based on standard Signamax optical fiber keystone jacks
- Equipped with rear cable management bar

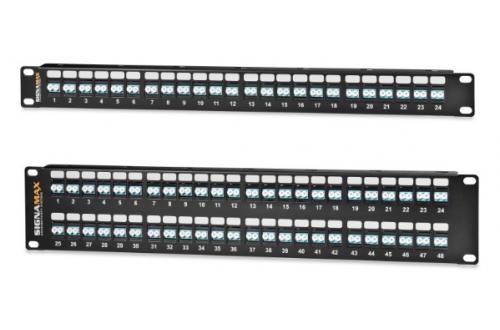

High-Density Optical Fiber Panels
OVERVIEW
Signamax offers a range of economy optical fiber patch panels for SC and LC connections. These rack-mount panels are available in 48-port (48-, and 96-fiber) size based on standard Signamax optical fiber keystone jacks and are ideal where space is limited as compared to the standard-density optical fiber panels or enclosures. These high-density panels provide increased termination density due to more compact adapter population. High-density panels are equipped with rear cable management bar when there is a need to provide support for bulky cables and/or maintain required cable bend radii.
SPECIFICATIONS
Information will be available soon.
DOWNLOADS
Information will be available soon
ORDERING INFORMATION
ST Optical Fiber Panel
| Part Number | Description | Add to [?] |
| 24HDST-FT | 24-Fiber High-Density ST MM Panel, 1.75"H | |
| 48HDST-FT | 48-Fiber High-Density ST MM Panel, 3.50"H |
SC Optical Fiber Panels
| Part Number | Description | Add to [?] |
| 24HDSC-FT | 24-Fiber (24-Simplex) High-Density SC MM Panel, 1.75"H | |
| 48HDSC-FT | 48-Fiber (48-Simplex) High-Density SC MM Panel, 3.50"H |
LC Optical Fiber Panels
| Part Number | Description | Add to [?] |
| 24HDLC-FT | 48-Fiber (24-Duplex) High-Density LC MM Panel, 1.75"H | |
| 48HDLC-FT | 96-Fiber (48-Duplex) High-Density LC MM Panel, 3.50"H |
|
