OVERVIEW

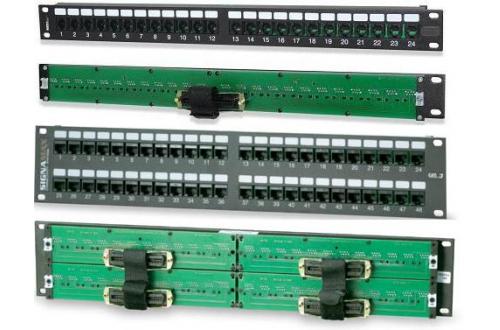

Category 3 Modular-Telco Patch Panels are available in 24- and 48-port sizes and support 2-wire "RJ-11", 4-wire "RJ-11", 2 wire "RJ-45" and 4 wire "RJ-45" USOC wiring schemes. Each 50-position Telco connector is provided with both Velcro strain relief brackets and hex sockets to secure 25-pair cables with either 90-degree or 180-degree cable exit. Panels' front features a write-on surface to provide port identification. Panels include an integrated cable management/strain relief system for improved cable routing and strain relief.

KEY FEATURES

Category 3 transmission performance
Cross-connections complying with the structured cabling principles
Saves labor cost otherwise needed for multiple terminations
Standard 25-pair male/female Telco-style connectors (50-position miniature ribbon connectors)
Contact design provides enhanced plug-to-jack connection integrity and protects against damage caused by insertion of 4- or 6-position plugs
Standard pin configuration (USOC)
Available in 2- and 4-wire USOC wiring schemes
Rated for at least 750 plug insertions providing for the highest level of system reliability
Easy access to Telco connectors

SPECIFICATIONS

TRANSMISSION PERFORMANCE

ANSI/TIA/EIA-568-B.2: category 3 (1-16 MHz) specifications
IEC 60603-7: category 3 (1-16 MHz) specifications

TRANSMISSION MEDIA

Modular jacks:
xx112-C3xU:
1-pair (6P4C, 6P6C modular plugs) twisted-pair cable assemblies
2-pair (6P4C, 6P6C modular plugs) twisted-pair cable assemblies
3-pair (6P6C modular plugs) twisted-pair cable assemblies

xx114-C3xU:
2-pair (6P4C, 6P6C modular plugs) twisted-pair cable assemblies
3-pair (6P6C modular plugs) twisted-pair cable assemblies

xx452-C3xU:
1-pair (6P4C, 6P6C, 8P8C modular plugs) twisted-pair cable assemblies
2-pair (6P4C, 6P6C, 8P8C modular plugs) twisted-pair cable assemblies
3-pair (6P6C, 8P8C modular plugs) twisted-pair cable assemblies
4-pair (8P8C modular plugs) twisted-pair cable assemblies

xx454-C3xU:
2-pair (6P4C, 6P6C, 8P8C modular plugs) twisted-pair cable assemblies
3-pair (6P6C, 8P8C modular plugs) twisted-pair cable assemblies
4-pair (8P8C modular plugs) twisted-pair cable assemblies

TELCO connectors:
24/25-pair (50-position miniature ribbon connectors, male/female) twisted-pair cable assemblies

JACK TYPE

xx112-C3xU: 6P6C (6-position, 6-contact) "RJ12" type
xx114-C3xU 6P6C (6-position, 6-contact) "RJ12" type
xx452-C3xU 8P8C (8-position, 8-contact) "RJ45" type
xx454-C3xU 8P8C (8-position, 8-contact) "RJ45" type

CONNECTOR CONTACTS

6P6C/8P8C sockets: phosphor bronze, nickel plating
50-position ribbon: phosphor bronze, gold plating

C3-MT-PP Wiring Schemes - modular port pinouts

WIRING SCHEMES

xx112-C3xU: USOC, pins 3-4
C3-MT-PP Wiring Schemes - pins 3-4

xx114-C3xU: USOC, pins 2-3-4-5
C3-MT-PP Wiring Schemes - pins 2-3-4-5

xx452-C3xU: USOC, pins 4-5
C3-MT-PP Wiring Schemes - pins 4-5

xx454-C3xU: USOC, pins 3-4-5-6
C3-MT-PP Wiring Schemes - pins 3-4-5-6

CONSTRUCTION

Panel frame: cold-rolled steel, black paint coating
Electric circuitry: PCB, panel-mounted 6P6C/8P8C sockets and 50-position miniature ribbon connectors (male or female)
Connectors housings: high-impact, flame-retardant UL 94V-0 thermoplastic

DIMENSIONS

24xxx-C3xU 19" rack mountable, 1.75" (1 RMU) high
48xxx-C3xU 19" rack mountable, 3.5" (2 RMU) high

OPERATING TEMPERATURE

-14°F - 140°F (-10°C - +60°C)

COMPLIANCE

ANSI/TIA-568-C.2, IEC 60603-7, FCC Part 68 Subpart F, UL 94V-0

APPLICATIONS

X.21, V.11, S0, ISDN, CSMA/CD 10BASE-T, TR 4

WARRANTY

5-year limited component warranty

DOWNLOADS

Download Datasheet

ORDERING INFORMATION

Part Number	Description
24112-C3MU	24-Port Category 3 RJ-11 2W Modular-Telco Patch Panel, Active Pins 3-4, USOC, Male, 1.75″ High
48112-C3MU	48-Port Category 3 RJ-11 2W Modular-Telco Patch Panel, Active Pins 3-4, USOC, Male, 3.50″ High
24114-C3MU	24-Port Category 3 RJ-11 4W Modular-Telco Patch Panel, Active Pins 2-5, USOC, Male, 1.75″ High
48114-C3MU	48-Port Category 3 RJ-11 4W Modular-Telco Patch Panel, Active Pins 2-5, USOC, Male, 3.50″ High
24452-C3MU	24-Port Category 3 RJ-45 2W Modular-Telco Patch Panel, Active Pins 4-5, USOC, Male, 1.75″ High
48452-C3MU	48-Port Category 3 RJ-45 2W Modular-Telco Patch Panel, Active Pins 4-5, USOC, Male, 3.50″ High
24454-C3MU	24-Port Category 3 RJ-45 4W Modular-Telco Patch Panel, Active Pins 3-6, USOC, Male, 1.75″ High
48454-C3MU	48-Port Category 3 RJ-45 4W Modular-Telco Patch Panel, Active Pins 3-6, USOC, Male, 3.50″ High
