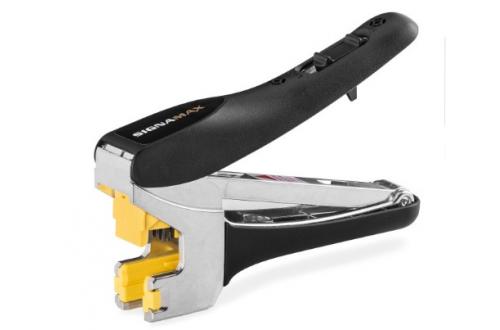

Simultaneous termination of all eight twisted-pair cable conductors along with trimming of conductor excess allows to save installation time, provides reliable termination means in confined areas, while ensuring precise and consistent termination of all pairs due to the calibrated die drive mechanism.
KJMT-8600 is designed to work with the following Signamax MT-series keystone jacks:
KJ458MT-CA6C-xx
KJ458MT-C6C-xx
KJ458MT-C5E-xx
KJ126MT-C3U-xx
KJEC-8600 is designed to work with the following Signamax EC-series keystone jacks
KJ458EC25-C6C-xx
KJ458EC25-C5E-xx
KJ126EC25-C3U-xx
8p8c (8-position, 8-contact) “RJ45” type
110-style IDC
Insulated copper
22-24 AWG (0.644-0.511 mm)
Stowed:
D 165 mm H 80 mm W 30 mm
D 6.5 in H 3.2 in W 1.2 in
Operational:
D 165 mm H 150 mm W 30 mm
D 6.5 in H 5.9 in W 1.2 in
Framework: steel alloy
Handle casing: high-impact thermoplastic
Die: high-impact thermoplastic, tool steel
Storage: -40 °C – +70 °C (-40 °F – +158 °F)
Operation: -10 °C – +60 °C (+14 °F – +140 °F)
RH (operation): max non-condensing 93 %
Information will be available soon
| Part Number | Description | |
| KJMT-8600 | Multi-Pair Termination Tool For MT-Series Keystone Jacks | |
| KJMT-8600-DS | Replacement Termination Die for KJMT-8600 Tool |
| Part Number | Description | |
| KJEC-8600 | Multi-Pair Termination Tool For EC-Series Keystone Jacks | |
| KJEC-8600-DS | Replacement Termination Die For KJEC-8600 Tool |
