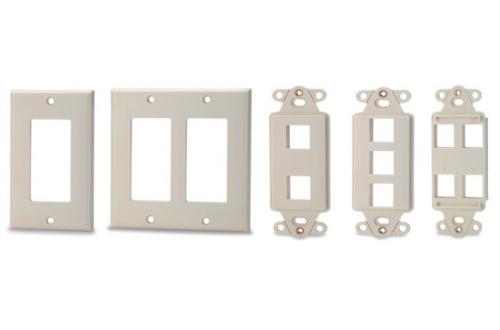

Decora-Style Faceplates and Adapters are compatible with all Signamax keystone jacks and multimedia modules, Faceplates are available in single- and double-gang versions. Adapters are available in a variety of port sizes and are ideal for combining data, voice, audio and video in one outlet location.
High impact thermoplastic, UL94V-0 fire retardant
W: 80.0 mm H: 124.0 mm
W: 3.13 in H: 4.88 in
Mounting screw holes distance: 83.3 mm (3.28 in)
Standard keystone footprint
Panel opening: 14.7 mm (0.579 in) × 19.30 mm (0.760 in)
-10 °C to +60 °C (-14 °F to +140 °F)
Single-Gang Decora-Style Faceplate
| Part Number | Description | |
| SKFD-1 | Single-Gang Decora-Style Faceplate, Light Ivory | |
| SKFD-1-WH | Single-Gang Decora-Style Faceplate, White | |
| SKFD-1-DI | Single-Gang Decora-Style Faceplate, Dark Ivory | |
| SKFD-1-GY | Single-Gang Decora-Style Faceplate, Gray |
Double-Gang Decora-Style Faceplate
| Part Number | Description | |
| DKFD-2 | Double-Gang Decora-Style Faceplate, Light Ivory | |
| DKFD-2-WH | Double-Gang Decora-Style Faceplate, White | |
| DKFD-2-DI | Double-Gang Decora-Style Faceplate, Dark Ivory | |
| DKFD-2-GY | Double-Gang Decora-Style Faceplate, Gray |
|
Blank Decora-Style Keystone Adapter
| Part Number | Description | |
| DA-BL | Blank Decora-Style Adapter, Light Ivory | |
| DA-BL-WH | Blank Decora-Style Adapter, White |
1-Port Decora-Style Keystone Adapter
| Part Number | Description | |
| DA-1 | 1-Port Decora-Style Keystone Adapter, Light Ivory | |
| DA-1-WH | 1-Port Decora-Style Keystone Adapter, White | |
| DA-1-DI | 1-Port Decora-Style Keystone Adapter, Dark Ivory | |
| DA-1-GY | 1-Port Decora-Style Keystone Adapter, Gray |
2-Port Decora-Style Keystone Adapter
| Part Number | Description | |
| DA-2 | 2-Port Decora-Style Keystone Adapter, Light Ivory | |
| DA-2-WH | 2-Port Decora-Style Keystone Adapter, White | |
| DA-2-DI | 2-Port Decora-Style Keystone Adapter, Dark Ivory | |
| DA-2-GY | 2-Port Decora-Style Keystone Adapter, Gray |
3-Port Decora-Style Keystone Adapter
| Part Number | Description | |
| DA-3 | 3-Port Decora Style Keystone Adapter, Light Ivory | |
| DA-3-WH | 3-Port Decora-Style Keystone Adapter, White | |
| DA-3-DI | 3-Port Decora-Style Keystone Adapter, Dark Ivory | |
| DA-3-GY | 3-Port Decora-Style Keystone Adapter, Gray |
4-Port Decora-Style Keystone Adapter
| Part Number | Description | |
| DA-4 | 4-Port Decora-Style Keystone Adapter, Light Ivory | |
| DA-4-WH | 4-Port Decora-Style Keystone Adapter, White | |
