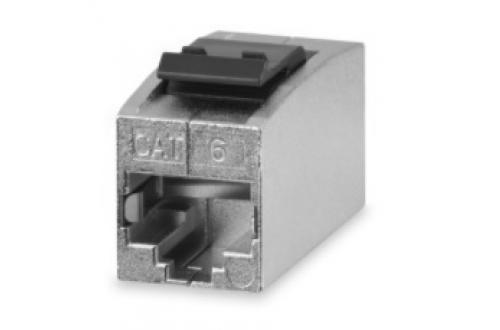

Category 6 Screened Keystone Feed-Thru Couplers

Category 6 Screened Keystone Feed-Thru Couplers

OVERVIEW

Category 6 keystone screened feed-thru couplers can be used as a second piece of connecting hardware when a cross-connection is needed for active equipment connection to the cabling, and as a consolidation point in the open office environment. Feed-thru cou-plers meet requirements as defined in TIA/EIA-568-C.2 and provide a sound platform for supporting today's network technologies in-cluding Gigabit Ethernet. These high-density feed-thru couplers are compatible with all Signamax faceplates, surface mount multime-dia boxes and Signamax 24- and 48-port high density snap-in patch panels providing flexibility in field installation.

KEY FEATURES

  • Applications - cross-connections, horizontal cabling consolidation points, horizontal cabling connection point in building automation cabling
  • Contact design provides enhanced plug-to-jack connection integrity and protects against damage caused by insertion of 4- or 6-position plugs
  • Rated for at least 750 plug insertions
  • Compatible with T568A and T568B cabling

SPECIFICATIONS

  • TRANSMISSION PERFORMANCE

ANSI/TIA/EIA-568-B.2-1: category 6 (1 - 250 MHz) specifications
ISO/IEC 11801 2nd Ed., CENELEC EN 50173: category 6 (1 - 250 MHz) specifications

  • TRANSMISSION MEDIA

Unscreened (UTP) and screened (FTP, ScTP, STP)

  • JACK TYPE

8p8c (8-position, 8-contact) "RJ45" type

  • WIRING SCHEME

Straight-thru - compatible with any wiring scheme up to 8 conductors

  • CONSTRUCTION

Housing: screened case: copper C2680, 0.25 mm (0.0098 in), 100 micro inches nickel plated
contact holder: high impact thermoplastic, PBT UL94V-0 fire retardant
Jack contacts: phosphor bronze 5100W temper wire, min 50 µin of gold plating over 100 µin nickel plating

  • ELECTRICAL

Insulation resistance: min 500 MOhm @ 100 Vdc
Dielectric withstanding voltage: 1,000 Vdc/ac peak contact to contact @ 60 Hz for 1 min
Spring wire contact resistance: max 20 MOhm
DC contact resistance: max 0.1 Ohm

  • MECHANICAL

Insertion life: min 750 mating cycles with FCC compliant 8p8c plug
Contact force: min 100 g each contact with FCC compliant 8p8c plug
Plug retention force: min 50 N (11 lbf) for 60±5 s

  • FOOTPRINT

Standard keystone footprint

  • MOUNTING DIMENSIONS

W 14.6 mm x H 16.2 mm x D 29.4 mm
W 0.58 in x H 0.64 in x D 1.16 in

  • ENVIRONMENTAL CONDITIONS

Storage temperature: -40 °C - +68 °C (-40 °F - 154 °F)
Operating temperature: -10 °C - +60 °C (-14 °F - 140 °F)
Humidity: 10 % - 90 % RH

  • COMPLIANCE

ANSI/TIA/EIA-568-C.2, ISO/IEC 11801 2nd Ed., CENELEC EN 50173, FCC Part 68 Subpart F, UL 1863, IEC 60603-7

  • APPLICATIONS

X.21, V.11, S0, ISDN, CSMA/CD 10BASE-T, 100BASE-TX, 100BASE-T4, 100BASE-T2, 1000BASE-T, TR 4/16/100, 100BASE-VG, ATM LAN 25/51/155, TP-PMD

  • WARRANTY

5-year limited component warranty

ORDERING INFORMATION



Part Number Description
KRJ45/6S-SH Category 6 Screened Keystone Feed-Thru Coupler
