100BaseFX/BX SFP Fiber Module – 110 km

Overview
Key Features
Specifications
Downloads
Ordering Information

OVERVIEW

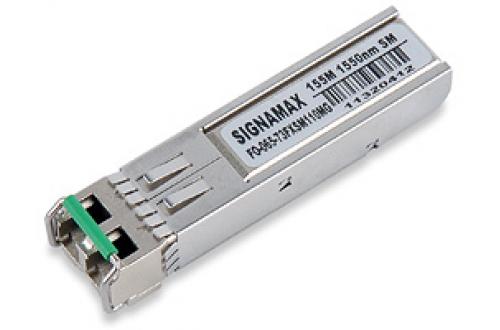

The Signamax 065-73FXSM110MG is a Small Form-factor Pluggable (SFP) multimode fiber module that supports Fast Ethernet, SONET OC-3, or SDH STM-1 over singlemode fiber cable at distances up to 110 kilometers. It adheres to the IEEE 802.3u standard for Fast Ethernet over singlemode fiber at 1550 nm, and is a cost-effective method of providing changeable Fast Ethernet / OC-3 / STM-1 singlemode interfaces to switches and media converters designed for these applications that are equipped with a standard 100Base SFP port.

KEY FEATURES

RoHS compliant
Meets the SFP Multi-Source Agreement (MSA)
Up to 110 km link distance
Hot pluggable
Metal enclosure for low EMI performance
Low power dissipation

Application

Metro Access Rings
Point-to-Point networking
SONET OC-3 / SDH STM-1 over singlemode fiber
100BaseFX Fast Ethernet over singlemode fiber

SPECIFICATIONS

Part Number	Model / Spectrum	Light Source	Link Power Budget	Typical Max. Distance**	Supply Voltage	Operating Temp.
065-73FXSM110MG	LX 1550 nm	DFP Laser	34 dBm	110 km	3.3 V	0 ~ 70° C

** Maximum distances attainable on singlemode fiber circuits are dependent upon a circuit’s conditions; i.e., the number of splices and patch panels and the number of bends in the circuit path. For comparison with competing products, please use the Link Power Budget for meaningful comparisons.

DOWNLOADS

Datasheet

ORDERING INFORMATION

Part Number	Description
065-73FXSM110MG	100BaseFX / OC-3 / STM-1 SFP Module - SM/LC, 110km
