OVERVIEW

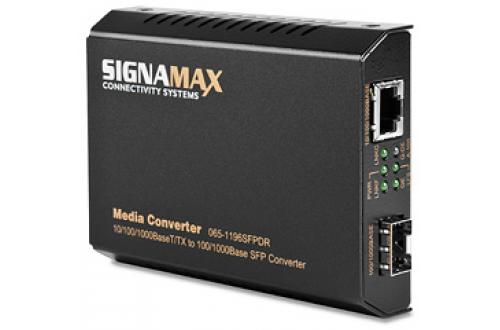

The Signamax 10/100/1000 to 100/1000 SFP Media Converters provides a flexible and intelligent solution for long distance connections between legacy 10BaseT and 100BaseTX networks and either 1000Base Gigabit Ethernet fiber or 100Base fiber networks. The built-in 10/100/1000 switch enables the fiber cable connection to operate at 1000 Mbps, while remaining completely 1000BaseSX/LX or 100BaseFX/BX standard-compliant for the fiber optic connection.
The dual-rate fiber converter includes the ability to force the RJ-45 port to 100Base or 10Base full or half-duplex modes where required. The Link Fault Signaling provides a means of propagating a link drop on either port of the media converter to the other port, enabling a connected managed switch to see the link drop and respond to it using Spanning Tree Protocol or another recovery scheme.
SPECIFICATIONS
IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX
IEEE 802.3ab 1000BaseT
IEEE 802.3z 1000BaseSX
IEEE 802.3z 1000BaseLX
IEEE 802.3x Flow Control
1 – RJ-45 10/100/10000BaseT/TX port plus
1 -Dual-rate 1000Base or 100Base SFP port
Per Unit: Power; LFS Status; Full Duplex
Per RJ-45 Port: Link Copper; Copper port speed
(Green = 1000 Mbps, Amber = 100 Mbps, off = 10 Mbps)
Per SFP Port: Link Fiber
Latency: ≤1.6 μs (FIFO).
MTBF: 1,857,775.35 hours (212.07 years),
calculated via the Part Stress Analysis Method.
Throughput, per port:
@ 1000Base: 1,488,100 pps (64-byte packets);
@ 100Base: 148,810 pps (64-byte packets)
Switch Fabric Speed: 4.0 Gbps
(non-blocking, wire speed performance)
Frame Buffer: 12K total
Jumbo Frame Support: 9K packets supported
| |
| No. |
Down |
Up |
Notes |
| 1 |
Disable LFS |
Enable LFS |
LFS: Link Fault Signaling function |
| 2 |
Enable Auto-Negotiation for TX port |
Enable Force mode for TX port |
|
| 3 |
TX port Force mode: Full-duplex |
TX port Force mode: Half-duplex |
|
| 4 |
TX port Force mode: 100 Mbps |
TX port Force mode: 10 Mbps |
|
| 5 |
SFP at 100 Mbps |
SFP at 1000 Mbps |
|
| 6 |
Function reserved |
Function reserved |
|
|
- ELECTRICAL CHARACTERISTICS
12 V DC. External 100 – 240 V AC 50/60 Hz. Power supply included.
- ENVIRONMENTAL REQUIREMENTS
Operating Temperature: 32°F to 122°F (0°C to 50°C)
Storage Temperature: -14°F to 158°F (-10°C to 70°C)
Relative Humidity: 5% to 95% (non-condensing)
Dimensions: 4.33” L x 3.16” W x 0.91” H
(109.2 mm x 83 mm x 23.8 mm)
Weight: 0.33 lb (150 g)
CE, FCC, ROHS, VCCI Class A
Litmited Lifetime
ORDERING INFORMATION
|
Part Number
|
Description
|
|
065-1196SFPDR
|
10/100/1000BaseT/TX to Dual-Rate 100Base or 1000Base SFP Media Converter
|
Note: Please see our SFP Section for availability and specification information.
Mounting Options
|
Part Number
|
Description
|
|
AM10010
|
DIN-Rail Mounting for 065-11xx Series and 065-1696SFPDR Media Converters
|
|
065-1185
|
16-Bay Rack Mount Media Converter Chassis, AC
|
