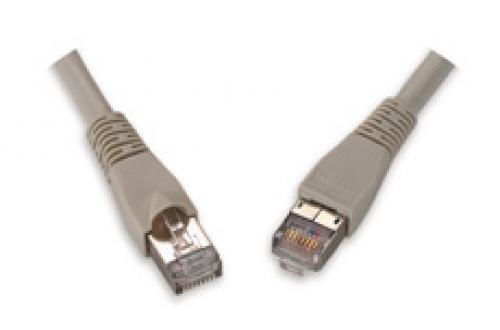

Category 5e screened cords are 100% transmission tested to component performance as specified in ANSI/TIA-568-C.2. Assembled in a controlled environment using advanced manufacturing techniques to ensure consistent quality, these patch cords provide excep-tional performance when mated with our category 5e connecting hardware and deliver supreme performance for network cabling sys-tems. Category 5e patch cords incorporate slim-profile snag-free boots, which protect the plug latch, and a flexible, but durable cable strain relief and are compatible with both T568A and T568B wiring schemes. Patch cords are manufactured using ETL-verified 26-AWG stranded cable designed for greater flexibility and service life and are available in seven standard lengths.
ANSI/TIA/EIA-568-C.2: category 5e (1-100 MHz) specifications
ISO/IEC 11801 2nd Ed.: category 5 (1-100 MHz) specifications
4-pair stranded screened twisted pair (ScTP/FTP)
ANSI/TIA/EIA-568-C.2: T568A & T568B
ISO/IEC 11801 2nd Ed.: 8-position conductor/pair assignment (1-2/3-6/4-5/7-8)
Construction: 4 pairs, 7 strands 26 AWG, UTP,
high density polyethylene insulation,
overall metal foil screen
fire retardant PVC compound jacket
Assembly: FCC Part 68 Subpart F
Housing: UL listed 94V-0 flame retardant polycarbonate
IDC blades: phosphor bronze, min 50 μin of gold plating over 100 μin of nickel in contact area
Retention: 50 N (11 lbf) for 60±5 s
Mating cycle life: min 750 cycles
Tensile strength: ≥ 20 N per wire
Insulation resistance: min 500 MOhm @ 100 Vdc
Dielectric withstanding voltage: 1,000 Vdc/ac peak contact to contact @ 60 Hz for 1 min
Contact resistance: max 20 MOhm
Storage: -40 °C-+70 °C (-40 °F-+158 °F)
Operation: -10 °C-+60 °C (+14 °F-+140 °F)
RH (operation): max non-condensing 93 %
ANSI/TIA/EIA-568-C.2, ISO/IEC 11801 2nd Ed., FCC Part 68, UL 1863, UL94V-0
X.21, V.11, S0, ISDN, CSMA/CD 10BASE-T, 100BASE-TX, 100BASE-T4, 100BASE-T2, 1000BASE-T, TR 4/16/100, 100BASE-VG, ATM LAN 25/51/155, TP-PMD
5-year limited component warranty
10-year Signamax Link/Channel Warranty
15-year Signamax Extended Component Warranty
25-year Signamax Cabling System Warranty
Information will be available soon
| Part Number | Description | |
| C5ES-314GY-3FB | Category 5e Screened Patch Cords w/Snag-Proof Boots, 3 FT. | |
| C5ES-314GY-5FB | Category 5e Screened Patch Cords w/Snag-Proof Boots, 5 FT. | |
| C5ES-314GY-7FB | Category 5e Screened Patch Cords w/Snag-Proof Boots, 7 FT. | |
| C5ES-314GY-10FB | Category 5e Screened Patch Cords w/Snag-Proof Boots, 10 FT. | |
| C5ES-314GY-15FB | Category 5e Screened Patch Cords w/Snag-Proof Boots, 15 FT. | |
| C5ES-314GY-20FB | Category 5e Screened Patch Cords w/Snag-Proof Boots, 20 FT. | |
| C5ES-314GY-25FB | Category 5e Screened Patch Cords w/Snag-Proof Boots, 25 FT. |
Standard cable color is gray. Additional colors and lengths are available for special order. Contact Customer Service.
