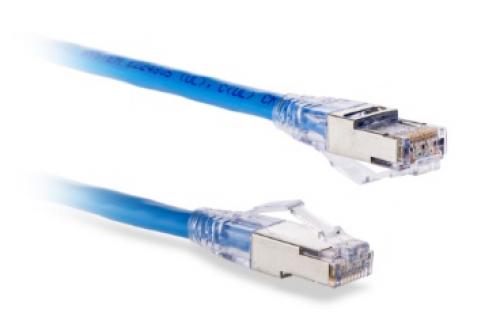

The Signamax Category 6A Screened Patch Cords have been designed to meet the need for today’s high-bandwidth applications. These patch cords incorporate a slim profile snag-free boot design which protects the plug latch and offers greater flexibility. The cords are 100% transmission tested and support category 6A component level performance.
Manufactured using ETL verified 26-AWG stranded cable design to support a greater service life. Assembled in a controlled environment to ensure consistent quality, these patch cords provide reliable performance when mated with any category 6A connecting hardware and deliver supreme performance for network cabling systems.
ANSI/TIA-568-C.2: category 6A (1-500 MHz) specifications
4-pair stranded screened twisted pair (ScTP/FTP)
ANSI/TIA/EIA-568-C.2: T568A & T568B
ISO/IEC 11801: 8-position conductor/pair assignment (1-2/3-6/4-5/7-8)
Jacket diameter: < 6.35 mm (0.25 in)
Construction: 4 pairs, 7 strands 26 AWG, UTP,
high density polyethylene insulation,
fire retardant PVC compound jacket
Assembly: FCC Part 68 Subpart F
Housing: UL listed 94V-0 flame retardant polycarbonate
IDC blades: phosphor bronze, min 50 μin of gold plating over 100 μin of nickel in contact area
Retention: 50 N (11 lbf) for 60±5 s
Mating cycle life: min 750 cycles
Tensile strength: ≥ 20 N per wire
Insulation resistance: min 500 MOhm @ 100 Vdc
Dielectric withstanding voltage: 1,000 Vdc/ac peak contact to contact @ 60 Hz for 1 min
Contact resistance: max 20 MOhm
Storage: -40 °C-+70 °C (-40 °F-+158 °F)
Operation: -10 °C-+60 °C (+14 °F-+140 °F)
RH (operation): max non-condensing 93 %
ANSI/TIA/EIA-568-B.2-10, IEEE 802.3 ab, FCC Part 68 Subpart F, UL94V-0
X.21, V.11, S0, ISDN, TR 4/16/100, 100BASE-VG, ATM LAN 25/51/155, TP-PMD, CSMA/CD 10BASE-T, 100BASE-TX, 100BASE-T4, 100BASE-T2, 1000BASE-T, 10GBASE-T
5-year limited component warranty
10-year Signamax Link/Channel Warranty
15-year Signamax Extended Component Warranty
25-year Signamax Cabling System Warranty100BASE-T2, 1000BASE-T, 10GBASE-T
| Part Number | Description | |
| C6AS-314CC-3FB | Category 6A Screened Patch Cords w/Snag-Proof Boots, 3 FT | |
| C6AS-314CC-5FB | Category 6A Screened Patch Cords w/Snag-Proof Boots, 5 FT | |
| C6AS-314CC-7FB | Category 6A Screened Patch Cords w/Snag-Proof Boots, 7 FT | |
| C6AS-314CC-10FB | Category 6A Screened Patch Cords w/Snag-Proof Boots, 10 FT | |
| C6AS-314CC-15FB | Category 6A Screened Patch Cords w/Snag-Proof Boots, 15 FT | |
| C6AS-314CC-20FB | Category 6A Screened Patch Cords w/Snag-Proof Boots,20 FT | |
| C6AS-314CC-25FB | Category 6A Screened Patch Cords w/Snag-Proof Boots, 25 FT |
