Category 6A MT-Series Screened Keystone Jacks

Category 6A MT-Series Screened Keystone Jacks

OVERVIEW

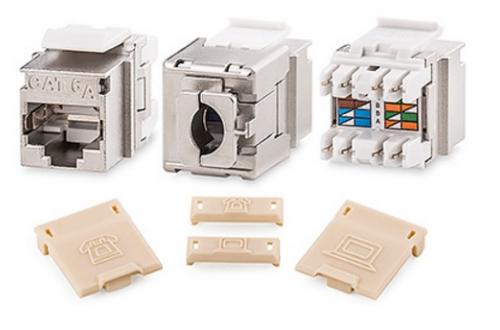

The Signamax Category 6A Screened MT-Series Keystone Jacks have been designed to meet the need for today’s high-bandwidth applications. These connectors are slim in profile for the highest density applications and have the ability to mount either color-coded icons for service identification or dust covers to protect unused jacks from dust and other contaminants.

Special design features allow these jacks to be terminated with a standard 110 single-position tool or with the Signamax four-pair tool. The contact design provides enhanced plug-to-jack connection integrity, protects against damage caused by insertion of 4- or 6-position plugs, and is rated for a minimum of 750 plug insertions providing for the highest level of system reliability.

KEY FEATURES

KEY FEATURES

  • Exceed ANSI/TIA-568-C.2 component performance specifications
  • Meet IEEE 802.3an 10 Gigabit Ethernet transmission requirements
  • Overall solid-metal shielding design for 360-degree screen coverage
  • Compatible with Signamax screened snap-in patch panels and work area faceplates
  • Improved wire retention and ease of termination with rear 110 type contacts
  • Easy-to-read T568A/B wiring scheme color-code label
  • Circuit identification icons and dust covers included in kit

SPECIFICATIONS

  • TRANSMISSION PERFORMANCE

ANSI/TIA-568-C.2, IEC/ISO 11801, ISO/IEC 60603-7-51: exceeds category 6A (1-500 MHz) component specifications

  • TRANSMISSION MEDIA

Unscreened (U/UTP) or screened (U/STP, F/UTP, F/STP, S/UTP, S/STP, SF/UTP, SF/STP) twisted pair
Cable Diameter:
Min: 0.20″ (5 mm)
Max: 0.35″ (9 mm)

  • JACK TYPE

8p8c (8-position, 8-contact) “RJ45” style

  • WIRING SCHEME

ANSI/TIA-568-C.2: T568A & T568B
ISO/IEC 11801 2nd Ed.: 8-position pin/pair assignment (1-2/3-6/4-5/7-8)

  • WIRE GAUGE

22 to 24 AWG (0.644 to 0.511 mm)

  • ELECTRICAL

Insulation Resistance: Min 500 MOhm @ 100 Vdc
Dielectric Withstanding Voltage:
1,000 Vdc/ac peak contact-to-contact @ 60 Hz for 1 min
1,500 Vdc/ac peak contact-to-panel @ 60 Hz for 1 min
Spring Wire Contact Resistance: Max 20 mOhm
IDC Contact Resistance: Max 2.5 mOhm
Current Rating: Refer to downloadable spec sheet.

  • CONSTRUCTION

Housing: Zinc-alloy
Jack Spring Wire: Phosphor bronze alloy plated with 50 μin of gold over 70 to 100 μin of nickel
IDC: 110 type, phosphor bronze alloy with 100 μin 100% tin alloy

  • MECHANICAL

Total Contact Force: Min 800 g for 8 wire leads
Retention: 50 N (11 lbf) for 60 ± 5 s
Mating Cycle Life: Min 750 cycles

  • FOOTPRINT

Standard keystone footprint

  • MOUNTING DIMENSIONS

1.67” D x 0.58” W x 1.02” H (42.4 mm x 14.6 mm x 25.8 mm)

  • ENVIRONMENTAL CONDITIONS

Operating Temperature: 14 °F to 140 °F (-10 °C to 60 °C)
Storage Temperature: -40 °F to 158 °F (-40 °C to 70 °C)
Operating RH: 93% Max (non-condensing)

  • COMPLIANCE

ANSI/TIA-568-C.2, IEC/ISO 11801, ISO/IEC 60603-7-51, FCC Part 68 Subpart F, UL 94V-0

  • APPLICATIONS

X.21, V.11, S0, ISDN, CSMA/CD 10BASE-T, 100BASE-TX, 100BASE-T4, 100BASE-T2, 1000BASE-T, 10GBASE-T, TR 4/16/100, 100BASE-VG, ATM LAN 25/51/155, TP-PMD

  • WARRANTY

5-year Limited Component
10-year Signamax Base Trunk
15-year Signamax Extended Component
25-year Signamax Cabling System

DOWNLOADS

Download DatasheetDownload Datasheet

ORDERING INFORMATION

Part Number Description
KJS458MT-C6AC Category 6A Screened MT-Series Keystone Jack, T568A/B Wiring, Ivory Accessories
