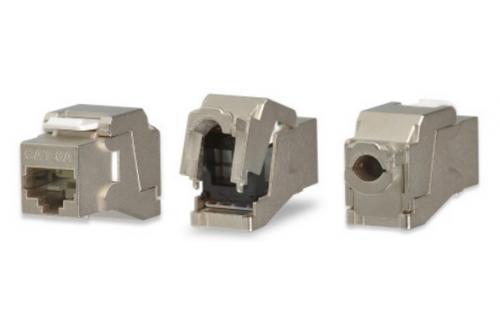

Category 6A Screened Toolless Keystone Jacks

Category 6A Screened Toolless Keystone Jacks

OVERVIEW

The Signamax Category 6A Screened Toolless Keystone Jacks have been designed to meet the need for today’s high-bandwidth applications. These connectors are slim in profile for the highest density applications and terminate with the integrated termination cap of the connector.

The contact design provides enhanced plug-to-jack connection integrity and protects against damage caused by insertion of 4 or 6 position plugs. This screened toolless jack is also rated for a minimum of 750 plug insertions providing for the highest level of system reliability.

KEY FEATURES

  • Exceeds ANSI/TIA-568-C.2 component performance specifications
  • Meets IEEE 802.3an 10 Gigabit Ethernet transmission requirements
  • Overall solid-metal shielding design for 360-degree screen coverage
  • Integrated toolless termination cap eliminates the need of any special tools
  • Improved wire retention and ease of termination with rear 110 type contacts
  • Easy-to-read T568A/B wiring scheme color-code label
  • Compatible with Signamax screened snap-in patch panels and work area faceplates

SPECIFICATIONS

  • TRANSMISSION PERFORMANCE

ANSI/TIA-568-C.2: exceeds category 6A (1-500 MHz) component specifications

  • TRANSMISSION MEDIA

Unscreened (U/UTP) or screened (U/STP, F/UTP, F/STP, S/UTP, S/STP, SF/UTP, SF/STP) twisted pair
Cable Diameter:
Min: 0.20″ (5 mm)
Max: 0.35″ (9 mm)

  • JACK TYPE

8p8c (8-position, 8-contact) “RJ45” style

  • WIRING SCHEME

ANSI/TIA-568-C.2: T568A & T568B
ISO/IEC 11801 2nd Ed.: 8-position pin/pair assignment (1-2/3-6/4-5/7-8)

  • WIRE GAUGE

22 to 24 AWG (0.644 to 0.511 mm)

  • ELECTRICAL

Insulation Resistance: Min 500 MOhm @ 100 Vdc
Dielectric Withstanding Voltage:
1,000 Vdc/ac peak contact-to-contact @ 60 Hz for 1 min
1,500 Vdc/ac peak contact-to-panel @ 60 Hz for 1 min
Spring Wire Contact Resistance: Max 20 mOhm
IDC Contact Resistance: Max 2.5 mOhm
Current Rating: Refer to downloadable spec sheet.

  • CONSTRUCTION

Housing: Zinc-alloy (fully shielded)
Grounding post for 2.5 x 0.5 mm (0.110 x 0.020 in) female disconnect.
Jack Spring Wire: Phosphor bronze alloy plated with 50 μin of gold over 70 to 100 μin of nickel
IDC: 110 type, phosphor bronze alloy with 100 μin 100% tin alloy

  • MECHANICAL

Total Contact Force: Min 800 g for 8 wire leads
Retention: 50 N (11 lbf) for 60 ± 5 s
Mating Cycle Life: Min 750 cycles

  • FOOTPRINT

Standard keystone footprint

  • MOUNTING DIMENSIONS

1.67” D x 0.58” W x 1.02” H (42.4 mm x 14.6 mm x 25.8 mm)

  • ENVIRONMENTAL CONDITIONS

Operating Temperature: 14 °F to 140 °F (-10 °C to 60 °C)
Storage Temperature: -40 °F to 158 °F (-40 °C to 70 °C)
Operating RH: 93% Max (non-condensing)

  • COMPLIANCE

ANSI/TIA-568-C.2, IEC 60603-7, FCC Part 68 Subpart F, UL 94V-0

  • APPLICATIONS

X.21, V.11, S0, ISDN, CSMA/CD 10BASE-T, 100BASE-TX, 100BASE-T4, 100BASE-T2, 1000BASE-T, 10GBASE-T, TR 4/16/100, 100BASE-VG, ATM LAN 25/51/155, TP-PMD

  • WARRANTY

5-year Limited Component
10-year Signamax Base Trunk
15-year Signamax Extended Component
25-year Signamax Cabling System



ORDERING INFORMATION



Part Number Description
KJS458TL-C6AC Category 6A Screened Toolless TL-Series Keystone Jack, T568 A/B Wiring
