Optical fiber pigtails are recommended or sometimes required when there is a need to make a transition from thin buffered fibers (250-900 µm), typical for distribution cables and not suitable for direct optical fiber connector termination, to cross-connection or equipment connection points. Pigtails mechanically or fusion connected to the distribution cable fibers simplify cabling system installation and servicing significantly.
Signamax pigtails are manufactured to meet TIA, IEC and Telcordia standard requirements. Signamax pigtails based on 900-µm buffered white cable are available in multimode (62.5-µm (OM1), 50-µm (OM2, OM3, and OM4)) and singlemode, ST, SC, FC and LC versions.
ANSI/TIA/EIA-568-C.3: Insertion and return loss
– 50/125 µm multimode optical fiber (OM2, OM3, OM4)
– 62.5/125 µm multimode optical fiber (OM1)
– 9/125 µm singlemode optical fiber (OS1)
ST, SC, LC: FOCIS (ANSI/TIA/EIA-604-3) compliant
– 900-µm buffered white simplex cable
– thermoplastic buffer material (OFNR-rated)
– ceramic connector ferrule
Multimode ST, SC, LC, FC: typical – 0.2 dB
maximum – 0.3 dB
Singlemode ST, SC, LC, FC: typical – 0.15 dB
maximum – 0.25 dB
Multimode 62.5/125 µm (OM1):
– 850 nm: 200 MHz-km
– 1300 nm: 500 MHz-km
Multimode 50/125 µm (OM2):
– 850 nm: 500 MHz-km
– 1300 nm: 500 MHz-km
Multimode 50/125 µm (OM3):
– 850 nm OFL: 1500 MHz-km
– 850 nm RML: 2000 MHz-km
– 1300 nm: 500 MHz-km
Multimode 50/125 µm (OM4):
– 850 nm OFL: 3500 MHz-km
– 850 nm RML: 4700 MHz-km
– 1300 nm: 500 MHz-km
PC: ≤ -30 dB
UPC: ≤ -50 dB
APC: ≤ -60 dB
-20°C to +70°C (-4°F to +158°F)
-40°C to +80°C (-40°F to +176°F)
ANSI/TIA/EIA-568-C.3, ISO/IEC 11801 2nd Ed., CENELEC EN 50173, FCC Part 68, UL 1863, UL94V-0
ISO/IEC 8802-3: FOIRL; ISO/IEC 8802-3: 10BASE-FL & FB; ISO/IEC TR 11802-4; ISO/IEC 9314-3: FDDI PMD; ISO/IEC 8802-3: 100BASE-FX; IEEE 802.5t: 100 Mbit/s Token Ring; IEEE 802.12: Demand Priority; IEEE 802.3: 1000BASE-SX, LX; IEEE 802.3: 10GBASE-ER, EW, LR, LW, LX4, SR, SW, ZR; ATM @ 52, 155, 622; CD 14165-1: Fibre Channel (FC-PH) @ 266, 531, 1062; CD 9314-9: FDDI LCF-PMD; DIS 9314-4: FDDI SMF-PMD
5-year limited component warranty
10-year Signamax Link/Channel Warranty
15-year Signamax Extended Component Warranty
25-year Signamax Cabling System Warranty
Information will be available soon

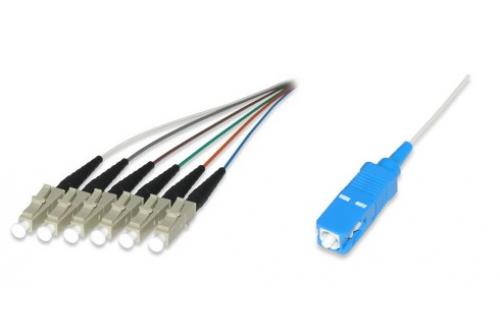

Single Stand (FP1-Series) Fiber Pigtail
OM1 62.5-µm Multimode
| Part Number | Description |
| FP1-6-2-003M | ST OM1 Multimode Single-Fiber Pigtail, 3 Meters |
| FP1-6-4-003M | SC OM1 Multimode Single-Fiber Pigtail, 3 Meters |
| FP1-6-9-003M | LC OM1 Multimode Single-Fiber Pigtail, 3 Meters |
OM2 50-µm Mulitmode
| Part Number | Description |
| FP1-5-2-003M | ST OM2 Multimode Single-Fiber Pigtail, 3 Meters |
| FP1-5-4-003M | SC OM2 Multimode Single-Fiber Pigtail, 3 Meters |
| FP1-5-9-003M | LC OM2 Multimode Single-Fiber Pigtail, 3 Meters |
OM3 50-µm Mulitmode
| Part Number | Description |
| FP1-51-4-003M | SC OM3 Multimode Single-Fiber Pigtail, 3 Meters |
| FP1-51-9-003M | LC OM3 Multimode Single-Fiber Pigtail, 3 Meters |
OM4 50-µm Mulitmode
| Part Number | Description |
| FP1-52-4-003M | SC OM4 Multimode Single-Fiber Pigtail, 3 Meters |
| FP1-52-9-003M | LC OM4 Multimode Single-Fiber Pigtail, 3 Meters |
OS1 9-µm Singlemode
| Part Number | Description |
| FP1-9-2-003M | ST OS1 Singlemode Single-Fiber Pigtail, 3 Meters |
| FP1-9-4-003M | SC OS1 Singlemode Single-Fiber Pigtail, 3 Meters |
| FP1-9-9-003M | LC OS1 Singlemode Single-Fiber Pigtail, 3 Meters |
6 Stand (FP6-Series) Fiber Pigtail
OM1 62.5-µm Multimode
| Part Number | Description |
| FP6-6-2-003M | ST OM1 Multimode 6-Fiber Pigtail, 3 Meters |
| FP6-6-4-003M | SC OM1 Multimode 6-Fiber Pigtail, 3 Meters |
| FP6-6-9-003M | LC OM1 Multimode 6-Fiber Pigtail, 3 Meters |
OM2 50-µm Mulitmode
| Part Number | Description |
| FP6-5-2-003M | ST OM2 Multimode 6-Fiber Pigtail, 3 Meters |
| FP6-5-4-003M | SC OM2 Multimode 6-Fiber Pigtail, 3 Meters |
| FP6-5-9-003M | LC OM2 Multimode 6-Fiber Pigtail, 3 Meters |
OM3 50-µm Mulitmode
| Part Number | Description |
| FP6-51-4-003M | SC OM3 Multimode 6-Fiber Pigtail, 3 Meters |
| FP6-51-9-003M | LC OM3 Multimode 6-Fiber Pigtail, 3 Meters |
OM4 50-µm Mulitmode
| Part Number | Description |
| FP6-52-4-003M | SC OM4 Multimode 6-Fiber Pigtail, 3 Meters |
| FP6-52-9-003M | LC OM4 Multimode 6-Fiber Pigtail, 3 Meters |
OS1 9-µm Singlemode
| Part Number | Description |
| FP6-9-2-003M | ST OS1 Singlemode 6-Fiber Pigtail, 3 Meters |
