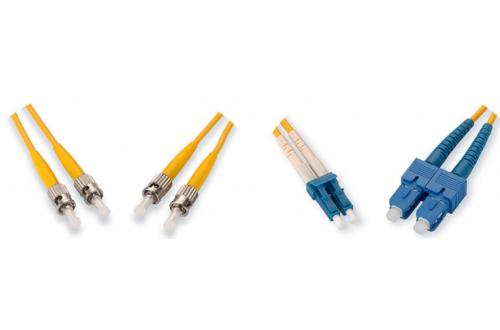

Singlemode optical fiber patch cords can be used as cross-connect jumpers, equipment and work area cords. All Signamax optical fi-ber patch cords are manufactured using riser-grade (OFNR) cable and are 100% factory tested for insertion and return loss to ensure transmission performance per ANSI/TIA-568-C.3 standard specifications. Patch cords terminated with ST, SC, LC and MT-RJ connec-tors (uniform and hybrid versions) are available in duplex and simplex designs.
Cordage used in singlemode optical fiber cords is color-coded per ANSI/TIA-598-C - all singlemode cables are yellow in color. Con-nectors with plastic bodies (SC and LC) are color-coded per ANSI/TIA-568-C.3 - singlemode PC and UPC - blue in color, singlemode APC - green. Marked clips, color rings, or colored connector boots identify each end of the duplex fiber cord to designate Position A and Position B.
ANSI/TIA/EIA-568-C.3: insertion and return loss (100% tested)
Optical fiber: 9/125-μm singlemode (OS1) optical fiber
Connector type: ST/SC/LC/FC/MT-RJ UPC singlemode
ST/SC/LC/FC APC singlemode
FOCIS (ANSI/TIA/EIA-604) compliant
- simplex or duplex fiber cordage
- thermoplastic outer jacket (OFNR-rated)
- thermoplastic strain relief
Return loss: UPC: ≤ -50 dB
APC: ≤ -60 dB
Insertion loss: ST, SC, LC, FC: typical - 0.2 dB, max - 0.3 dB
MT-RJ: typical - 0.3 dB, max - 0.5 dB
Connector ferrule: ceramic
End-face radius of curvature: 10 mm (0.39 in) < R < 30 mm (1.18 in)
Apex offset: < 50 μm
Cable material: PVC OFNR
Cable jacket color: yellow
Operation temperature: -20 °C to +70 °C (-4 °F to +158 °F)
Storage temperature: -40 °C to +80 °C (-40 °F to +176 °F)
Humidity: 95 %RH (non-condensing)
ANSI/TIA-568-C.3, ISO/IEC 11801 2nd Ed., CENELEC EN 50173, UL94V-0
FDDI SMF-PMD ANSI X3.184 1000BASE-LX 10GBASE-LX4 Fibre Channel 100-MX-SN-I
10GBASE-L Fibre Channel 200-MX-SN-I
Fibre Channel 400-MX-SN-1
Fibre Channel 1200-MX-SN-1
5-year limited component warranty
10-year Signamax Link/Channel Warranty
15-year Signamax Extended Component Warranty
25-year Signamax Cabling System Warranty
