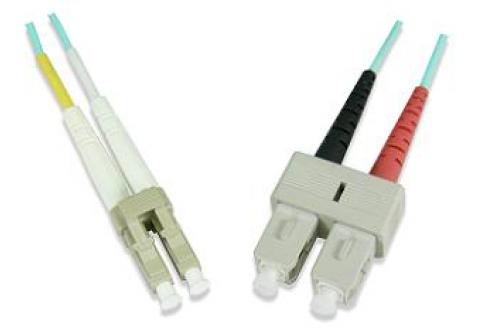

10G laser-optimized optical fiber (LOF) patch cords intended to support high-speed 10-gigabit applications can be used as cross-connect jumpers, equipment and work area cords. All Signamax LOF patch cords are manufactured using riser-grade cable (OFNR) and are 100% factory tested for insertion and return loss to ensure transmission performance per ANSI/TIA-568-C.3 standard specifi-cations. Patch cords terminated with SC and LC connectors (uniform and hybrid versions) are available in duplex and simplex de-signs.
Cordage used in LOF cords is aqua in color per ANSI/TIA-598-C; connectors are grey in color per ANSI/TIA-568-C.3. Marked clips, color rings, or colored connector boots identify each end of the duplex optical fiber cord to designate Position A and Position B.
ANSI/TIA/EIA-568-C.3: insertion and return loss (100% tested)
Optical fiber: 50/125-μm 850-nm laser-optimized multimode (OM3) optical fiber
Connector type: SC/LC PC multimode, FOCIS (ANSI/TIA/EIA-604) compliant
- simplex or duplex fiber cordage
- thermoplastic outer jacket (OFNR-rated)
- thermoplastic strain relief
Bandwidth: 850 nm OFL: 1500 MHz-km
850 nm RML: 2000 MHz-km
1300 nm: 500 MHz-km
Return loss: PC ≤ -30 dB
Insertion loss: SC, LC: typical - 0.2 dB, max - 0.3 dB
MT-RJ: typical - 0.3 dB, max - 0.5 dB
Connector ferrule: ceramic
End-face radius of curvature: 10 mm (0.39 in) < R < 30 mm (1.18 in)
Apex offset: < 50 μm
Cable material: PVC OFNR
Cable jacket color: aqua
Operation temperature: -20 °C to +70 °C (-4 °F to +158 °F)
Storage temperature: -40 °C to +80 °C (-40 °F to +176 °F)
Humidity: 95 % RH (non-condensing)
ANSI/TIA-568-C.3, ISO/IEC 11801 2nd Ed., CENELEC EN 50173, UL94V-0
FDDI PMD ANSI X3.166 10BASE-SX 100BASE-SX 1000BASE-SX 10GBASE-S Fibre Channel 100-MX-SN-I
100BASE-FX 1000BASE-LX 10GBASE-LX4 Fibre Channel 200-MX-SN-I
10GBASE-LRM Fibre Channel 400-MX-SN-1
Fibre Channel 1200-MX-SN-1
5-year limited component warranty
10-year Signamax Link/Channel Warranty
15-year Signamax Extended Component Warranty
25-year Signamax Cabling System Warranty
